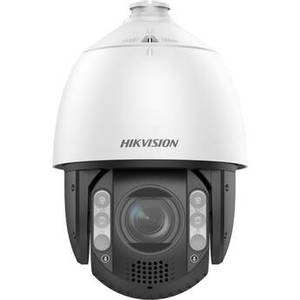

ColorVu AcuSense DS-2DE7A812MCG-EB 8MP Outdoor PTZ Network Dome Camera with Night Vision & Heater


From Hikvision | Model #: HI7A812MCGEB



See more in Cameras


ColorVu AcuSense DS-2DE7A812MCG-EB 8MP Outdoor PTZ Network Dome Camera with Night Vision & Heater

Product Description

Suitable for monitoring outdoor spaces such as rivers, roadways, railways, airports, squares, parks, and other large venues, the ColorVu AcuSense DS-2DE7A812MCG-EB 8MP PTZ Network Dome Camera from Hikvision uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 24 fps. IR LEDs provide up to 492' of night vision. Additionally, a supplemental white light provides up to 328' of illumination for recording full color video in low-light conditions. A 6.7-80.4mm varifocal lens delivers a 53 to 8.1° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 12x optical zoom. Two-way audio is possible thanks to a built-in speaker, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This PTZ camera is housed in an IP66- and IK10-rated (excluding glass window) enclosure that is suitable for outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -22°F.

Camera
Sensor 8 MP 1/1.8" CMOS
Lens Mount
Focal Length 6.7 to 80.4mm
Maximum Aperture f/1.2
Zoom Optical: 12x
Digital: 64x
Lens Field of View Horizontal: 53 to 8.1°
Vertical: 31.3 to 4.6°
Diagonal: 59.6 to 9.3°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.0005 Lux
B&W: 0 Lux
Shutter Speed 1/30,000 to 1 Seconds
Camera Angle Adjustment
DORI Coverage With 6.7 to 80.4mm Lens:
Detect: at 3543.3' / at 1080.0 m
Observe: at 1406.2' / at 428.6 m
Recognize: at 708.7' / at 216.0 m
Identify: at 354.3' / at 108.0 m
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 3840 x 2160 at 24 fps (16.384 Mb/s )
Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC-LC, G.711, G.722.1, G.726, MP2L2, PCM
Built-In Mic
Built-In Speaker Yes
Audio I/O
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt Programmed Pan: 360° at 240°/s
Programmed Tilt: 105° (-15 to 90°) at 200°/s
Move Speed
Movement Range
Networking
Security Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark
Supported Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) ONVIF Profiles G, S & T, ISAPI, SDK, ISUP
Analytics Motion Detection, Video Tampering Alarm, Exception, Alarm I/O, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection, Smart Tracking (Auto & Manual), Face Capture, Perimeter Protection
Built-In Installation Aids
OS Compatibility Android
iOS
Windows
macOS
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O 2 / 1
Hardware
Memory
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source AC, PoE 802.3bt (60 W)
Power Consumption 42 W (With Heater)
Environmental
Operating Temperature -22 to 149°F / -30 to 65°C
Startup Temperature
Storage Temperature
Operating Humidity 0 to 90% (Non-Condensing)
IP Rating IP66
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination IR LEDs up to 492.1' / 150 m
White LED up to 328.1' / 100 m
Video Management Software iVMS-4200, HikCentral Pro, Hik-Connect
Supported Languages
Certifications
Material of Construction Aluminum
Dimensions �: 8.7 x H: 14.1" / �: 220.0 x H: 357.3 mm
Weight 12.1 lb / 5.5 kg
