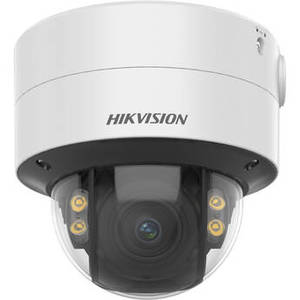

ColorVu DS-2CD2747G2T-LZS 4MP Outdoor Network Dome Camera
Product Description
Monitor an indoor or outdoor area with the ColorVu DS-2CD2747G2T-LZS 4MP Network Dome Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. A supplemental white light provides up to 131' of illumination for recording full color video in low-light conditions. The camera's 2.8-12mm motorized varifocal lens delivers a 105.4 to 56.4° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 105.4 to 56.4° Vertical: 53.9 to 31.6° Diagonal: 131.8 to 65.1° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 75° |
| DORI Coverage | With 2.8 to 12mm Lens: Detect: 219.2 up to 362.2' / 66.8 up to 110.4 m Observe: 87 up to 143.7' / 26.5 up to 43.8 m Recognize: 44 up to 72.5' / 13.4 up to 22.1 m Identify: 22 up to 36.1' / 6.7 up to 11.0 m |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2688 x 1520 at 30 fps (8 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | Input: 1 x 2-Pin Terminal Block Output: 1 x 2-Pin Terminal Block |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK |
| Analytics | Motion Detection (Supports Human and Vehicle Targets Classification), Video Tampering Alarm, Video Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection (Supports Human and Vehicle Targets Classification), Scene Change Detection, Face Capture |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | iOS Android *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 10.8 W PoE: 12.9 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | White LEDs up to 131.2' / 40 m |
| Video Management Software | iVMS-4200, Hik-Connect, Hik-Central |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 6.1 x H: 6.0" / �: 155.0 x H: 152.0 mm |
| Weight | 3.5 lb / 1600 g |
