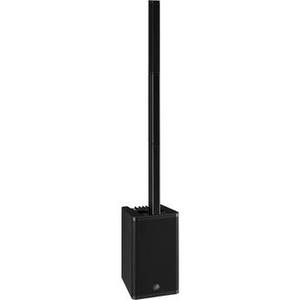

STAGEPAS 1K mkII 1100W 2-Way Portable PA System with Bluetooth


From Yamaha | Model #: YASGPS1KMKII



See more in Electronics


STAGEPAS 1K mkII 1100W 2-Way Portable PA System with Bluetooth

Product Description

Adding higher SPLs and even more remote functionality than its predecessor, the STAGEPAS 1K mkII Portable PA System from Yamaha boasts the same combination of lightweight design, professional mixing functions, and simple operation that has made the STAGEPAS series a standout in the portable PA market. The mkII couldn't be easier to carry and set up, with a mixer-integrated subwoofer and two-segment J-curve line array that can be assembled in seconds and produce enough volume and room coverage to facilitate a wide range of venues, from small coffee shops and clubs, to moderate-sized stages.

The STAGEPAS 1K mkII sports an advanced digital mixer with a useful ducking function for speech over background music, 1-knob EQ adjustment for performing multiple EQ processes simultaneously, and MODE selection, which allows you to adjust optimized compression settings like Speech, Club, or Music modes to match numerous applications. Expanded Bluetooth functionality allows you to use the STAGEPAS Controller app to wirelessly control your volume, 1-knob EQ, or 4-band PEQ during rehearsal or performance, even providing shorter set up times by saving and loading settings on a per song or application basis.

Portable PA System
Speaker Configuration 1 x 2-Way Loudspeaker with Subwoofer
Number of Input Channels 5 (3 x Mono, 1 x Stereo)
Amplifier Power Rating HF:
1 x 500 W
LF:
1 x 600 W
Total:
1 x 1100 W Program
Amplifier Class Class-D
Impedance
Speakers
Enclosure Type Subwoofer:
Bass-Reflex
Full-Range Driver
Full-Range Driver (Oval)
HF Driver 10 x 1.5" / 38.1 mm
HF Voice Coil
MF Driver
MF Voice Coil
LF Driver 1 x 12" / 30.48 cm Woofer
LF Voice Coil
Subwoofer Driver
Subwoofer Voice Coil
Magnet
Speaker Sensitivity
Signal Processing
Crossover 240 Hz
Input Pad None
EQ 1 x Contour
Semi-Parametric EQ
Effects 4 x Reverb
DSP
Filters
Dynamic Processing Compression, Peak Limiter
Microphone
Form Factor
Capsule
Polar Pattern
Output Connector
Operating Voltage
Microphone Sensitivity
Muting
Performance
Frequency Response System:
37 Hz to 20 kHz -10 dB
Frequency Range
Maximum SPL 125 dB SPL (Peak)
Max Coverage Distance
Max Coverage Area
Coverage Angle 170° H x 30° V
Coverage Angle
Input Sensitivity XLR Mic Input:
-50 dBu
XLR Line Input:
-24 dBu
1/4" Mic Input:
-44 dBu
1/4" / 1/8" / 3.5 mm Line Input:
-18 dBu
Gain Range
Max Input Level Mic Input:
-10 dBu (Balanced)
Mic Input:
-4 dBu (Unbalanced)
Line Input:
+16 dBu (Balanced)
+22 dBu (Unbalanced)
I/O Impedance XLR Mic Input:
3 Kilohms (Balanced)
1/4" TRS Mic Input:
10 Kilohms (Balanced)
XLR Line Input:
3 Kilohms (Balanced)
1/4" Line Input:
10 Kilohms (Balanced)
1 Megohms (Unbalanced)
1/8" / 3.5 mm Aux Input:
10 Kilohms
XLR Line Output:
75 Ohms (Balanced)
XLR Monitor Output:
75 Ohms (Balanced)
SNR
THD
Dynamic Range
Protections
Connectivity
Audio I/O 3 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" TS Female Unbalanced Line Input
1 x 1/4" TRS Female Footswitch Input
1 x XLR 3-Pin Male Balanced Link Input
2 x XLR 3-Pin Female Balanced Line/Link Output
Phantom Power
USB
Media Playback
Media & File Formats Supported
Network I/O
Wireless Connectivity Bluetooth
Wireless
Wireless Transmission
Max Wireless Range
Number of RF Channels
RF Frequency Band
RF Bandwidth
Form Factor
RF Output Power
Transmitter I/O
Max Number of Simultaneous Transmitters
Diversity
Antenna
Squelch
Approximate RF Sensitivity
Deviation
Modulation
RF Channel Crosstalk
Spurious
Bluetooth
Bluetooth 5.0
Bluetooth Profiles A2DP 1.2
Pairing Manual
Bluetooth Channel
Frequency 2.4 GHz (2402 to 2480 MHz)
Bluetooth Power Class 1
Bluetooth Input Gain
Transmitter Power 32 mW
Bluetooth Range
Power
Battery Type
Approximate Battery Life
Battery Charging Time
Internal Battery Capacity
Battery Cycle Count
AC Input Power 110 to 120 VAC, 60 Hz
220 to 240 VAC, 50 / 60 Hz
Power Supply Output
Current Consumption
Power Consumption 25 W (Idle)
91 W (1/8 Power)
DC Input Power
AC Power Connector 1 x IEC Input
Physical
Cable Length
Transport Options 1 x Handle (Top)
Mounting
Stand Height
Stand Load Capacity
Cooling
Construction Material ABS
IP Rating
Operating Temperature
Storage Temperature
Operating Humidity
Certifications
Dimensions System:
78.74 x 16.46 x 13.15" / 2000 x 418 x 334 mm (Full Assembly)
Subwoofer:
21.65 x 16.46 x 13.15" / 550 x 418 x 334 mm
Speaker:
22.91 x 3.39 x 2.64" / 582 x 86 x 67 mm
Assembly Hardware:
21.85 x 3.39 x 2.64" / 555 x 86 x 67 mm (Each)
Weight System:
50.71 lb / 23 kg (Full Assembly)
Subwoofer:
44.09 lb / 20 kg
Speaker:
3.97 lb / 1.8 kg
Assembly Hardware:
1.32 lb / 0.6 kg (Each)
