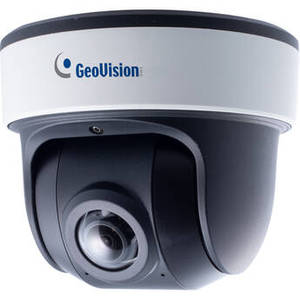

GV-PDR8800 8MP Outdoor Panoramic Network Dome Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the GV-PDR8800 8MP Panoramic Network Dome Camera from GEOVISION. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 25 fps. Two IR LEDs provide a night vision range up to 50'. The camera is equipped with a 1.68mm fixed lens that delivers a 180° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, Q, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 8 MP 1/2.8" CMOS |
| Lens Mount | M12 |
| Focal Length | 1.7mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 180° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.012 Lux B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 180° Vertical: 0 to 180° |
| DORI Coverage | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 25 fps 3456 x 1936 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTMP, RTP, RTSP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, Q, S & T |
| Analytics | Heat Mapping, Motion Detection, Audio Alarm, Tampering Detection, Object Left, Object Removed, Line Crossing, Region Entrance, Region Exiting, Advanced Motion Detection, Loitering, People Counting |
| Built-In Installation Aids | |
| OS Compatibility | iOS Android *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | None |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 9 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 2 x sup to 50' / 15.2 m |
| Video Management Software | GV-VMS |
| Supported Languages | Arabic Bulgarian Czech Dutch English Finnish French German Italian Japanese Korean Persian Portuguese Russian Slovenian Spanish Thai Traditional Chinese Turkish |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 5.0 x H: 4.2" / �: 127.2 x H: 107.0 mm |
| Weight | 1.87 lb / 0.85 kg |
