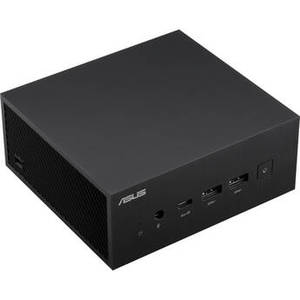

ExpertCenter PN53 Mini PC Barebone Computer


From ASUS | Model #: ASPN53BB5000



See more in Electronics


ExpertCenter PN53 Mini PC Barebone Computer

Product Description

Designed to scale to your business needs, the ASUS ExpertCenter PN53 Mini PC Barebone Computer gives you ample connectivity options so you can outfit your computer to your workload while retaining a reduced desktop footprint.

A 3.3 GHz AMD Ryzen 5 processor is included, offering a strong foundation for the rest of your components while also offering integrated AMD Radeon 680M graphics for clear and smooth imagery. Two SO-DIMM RAM slots enable you to install up to 64GB of DDR5 4800 MHz memory for enhanced multitasking capabilities. Install a small array of storage with a single 2.5" drive and two M.2 2280 PCIe NVMe SSDs with support for drives up to 2TB in capacity. Easily connect your favorite peripherals such as mice, keyboards, and more with a range of USB ports including five USB-A 3.2 Gen 1 ports that deliver up to 5 Gb/s data transfer speeds suitable for moving data to and from external storage drives. Two USB4 ports allow you to connect Type-C cables to gain up to 20 Gb/s data transfer speeds as well as video-out capabilities. You can also use the integrated Bluetooth 5.2 technology to use wireless peripherals for a true cable-free experience. Connect to your network wired or wirelessly with 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax), giving you a strong and reliable signal.

Operating System None
Performance
CPU Architecture x86
Chipset
Processor AMD Ryzen 5 6600H
CPU Socket
CPU 3.3 to 4.5 GHz 6-Core
L3 Cache 16 MB
Graphics Type Integrated
GPU AMD Radeon 680M
Memory Type 4800 MHz DDR5
Total Installed Memory None
Memory Configuration 0 GB
Maximum Memory Capacity 64 GB
Memory Slot Type 262-Pin SO-DIMM
Memory Slots 2 (2 Available)
Buffered Memory No
ECC Memory No
Intel Optane Memory
Afterburner
vPro Support
Display
Panel Type
Size
Aspect Ratio
Resolution
Touchscreen
Finish
Maximum Brightness
Color Gamut
Refresh Rate
Contrast Ratio
Response Time
Variable Refresh Technology
Viewing Angle (H x V)
Storage and Expansion
Total Drive Bays 1 x 2.5" (Internal)
2.5" Slots
SSD Slots 2 x M.2 2280 PCIe 4.0 (Available)
Total Installed Capacity None
Solid State Storage
Hard Disk Storage
Hybrid Storage
MPX Bays
PCI Expansion
PCI Expansion in MPX Bays
Optical Drive None
I/O
Ports 5 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
USB Type-C 2 x USB4 (Supports DisplayPort)
Display 2 x HDMI 2.1 Output
1 x DisplayPort
Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
Built-In Speakers
Built-In Microphones
Media/Memory Card Slot None
Communications
Ethernet 1 x RJ45 (2.5GbE)
Wi-Fi Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
MU-MIMO Support
Bluetooth 5.2
SIM Card Size
GSM 3G/3.5G
4G LTE
5G NR
GPS
NFC No
Webcam
Battery
Battery Chemistry
Capacity
Estimated Battery Life
Keyboard & Mouse
Keyboard None
Pointing Device None
General
Security Dedicated Hardware TPM Security Chip, Kensington Lock Slot
Power Supply 120 W with Barrel/Proprietary
AC Input Power
Operating Temperature
Operating Humidity
Certifications
Mounting-Hole Pattern
Dimensions 5.31 x 4.72 x 2.28" / 13.49 x 11.99 x 5.79 cm
Weight 2.5 lb / 1.1 kg
