Product Description

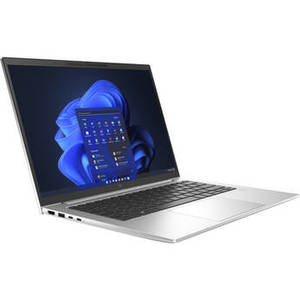

The 14" anti-glare display features a WUXGA 1920 x 1200 native resolution with a 16:10 aspect ratio, 250 nits of brightness, and coverage for 45% of the NTSC color gamut. Integrated Intel Iris Xe graphics delivers a sharp, clear picture, and you'll be able to output video to an external display using the HDMI 2.0 output, as well as Thunderbolt 4, which supports DisplayPort 1.4.
For storage of your files, a 512GB PCIe M.2 NVMe PCIe SSD offers quick access to your data. If you want to add external storage drives or other peripherals, the EliteBook 1040 G9 features two 40 Gb/s Thunderbolt 4 ports, plus two 5 Gb/s USB 3.2 Gen 1 Type-A ports, one of which doubles as a charging port. Wi-Fi 6E (802.11ax) is also built-in for wireless networking and Bluetooth 5.2 technology will allow you to connect additional compatible peripherals. Other features include an auto-tracking 5MP IR webcam for facial authentication with Windows Hello, dual mics, and 2W stereo speakers with Bang & Olufsen HD audio.
The EliteBook 1040 G9 Laptop includes a 65W USB Type-C power adapter. Windows 11 Pro (64-bit) is the installed operating system, although a Windows 10 Pro (64-bit) license is also included. Protection is provided by a limited 3-year parts & labor warranty.
Operating System | Windows 11 Pro (64-Bit) |
Performance | |
CPU Architecture | x86 |
Chipset | |
Processor | Intel Core i7-1255U (12th Gen) |
CPU Socket | |
CPU | 1.7 to 4.7 GHz Performance Dual-Core 1.2 to 3.5 GHz Efficiency 8-Core |
L3 Cache | 12 MB |
Graphics Type | Integrated |
GPU | Intel Iris Xe |
Memory Type | 4800 MHz DDR5 |
Total Installed Memory | 16 GB |
Memory Configuration | 2 x 8 GB (User-Replaceable) |
Maximum Memory Capacity | 64 GB |
Memory Slot Type | 262-Pin SO-DIMM |
Memory Slots | 2 (0 Available) |
Buffered Memory | No |
ECC Memory | No |
Intel Optane Memory | |
Afterburner | |
vPro Support | |
Display | |
Panel Type | IPS-Type LCD |
Size | 14" |
Aspect Ratio | 16:10 |
Resolution | 1920 x 1200 |
Touchscreen | No |
Finish | Anti-Glare / Matte |
Maximum Brightness | 400 cd/m2 |
Color Gamut | 100% sRGB |
Refresh Rate | |
Contrast Ratio | |
Response Time | |
Variable Refresh Technology | |
Viewing Angle (H x V) | 178 x 178° |
Storage and Expansion | |
Total Drive Bays | |
2.5" Slots | |
SSD Slots | 1 x M.2 2280 PCIe 4.0 x4 (In Use) |
Total Installed Capacity | 512 GB |
Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
Hard Disk Storage | |
Hybrid Storage | |
MPX Bays | |
PCI Expansion | |
PCI Expansion in MPX Bays | |
Expansion Slots | |
Optical Drive | None |
I/O | |
Ports | 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
Display | 1 x HDMI 2.0 |
Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
Built-In Speakers | 2 x 2 W |
Built-In Microphones | 2 |
Media/Memory Card Slot | None |
Communications | |
Ethernet | None |
Wi-Fi | Wi-Fi 6E (802.11ax) |
MU-MIMO Support | 2 x 2 |
Bluetooth | 5.2 |
GPS | None |
NFC | No |
Webcam | User-Facing: 5 MP |
Battery | |
Battery Chemistry | Lithium-Ion Polymer (LiPo) |
Capacity | Non-Removable 3-Cell: 51 Wh |
Estimated Battery Life | 13.75 Hours |
Keyboard & Mouse | |
Keyboard | Notebook Keyboard with Backlight |
Pointing Device | TouchPad |
General | |
Security | Dedicated Hardware TPM Security Chip, Facial Recognition, Fingerprint Reader, Nano Security Lock Slot, Webcam Blocker |
Power Supply | 65 W with USB-C |
AC Input Power | |
Operating Temperature | 32 to 95°F / 0 to 35°C |
Operating Humidity | 10 to 90% (Non-Condensing) |
Certifications | A-TICK, BSMI, CCC, CE, CSA, ENERGY STAR, EPEATGOLD, FCC, Kcc, SABS, UL, VCCI *as per Manufacturer |
Mounting-Hole Pattern | |
Dimensions | 12.41 x 8.83 x 0.76" / 31.52 x 22.43 x 1.93 cm |
Weight | 2.56 lb / 1.16 kg |
