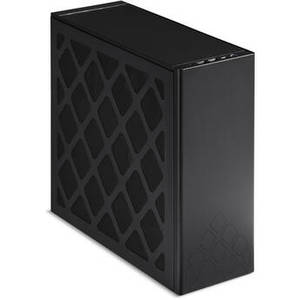

NUC 13 Extreme Kit (Barebone, US Power Cord)
Product Description
Build your own powerful gaming system with the Intel NUC 13 Extreme Kit. This barebones kit features the modular Intel NUC 13 Extreme Compute Element that houses a 13th Gen Intel Core i9 24-Core processor with integrated Intel UHD 770 Graphics. The two SO-DIMM slots can support up to 64GB of 5600 MHz DDR5 RAM. Gamers will be pleased to know that they will be able to fit a triple-slot 12" graphics card into the NUC 13 Extreme's PCIe 5.0 x16 slot. Gamers will have plenty of options for connecting to the internet for their online multiplayer games, such as a 10 GbE jack, a 2.5 GbE jack, and Wi-Fi 6E (802.11ax). Other features include Thunderbolt 4, HDMI 2.1, RGB lighting, and dual 120mm fans for a streamlined thermal design. You can install Windows 11 on the NUC 13 Extreme. A US power cord is included.
| Operating System | None |
| Performance | |
| CPU Architecture | x86 |
| Chipset | Intel Z690 |
| Processor | Intel Core i9-13900K (13th Gen) |
| CPU Socket | LGA 1700 |
| CPU | 3 to 5.8 GHz Performance 8-Core 2.2 to 4.3 GHz Efficiency 16-Core |
| L3 Cache | 36 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics 770 |
| Memory Type | 5600 MHz DDR5 |
| Total Installed Memory | None |
| Memory Configuration | 0 GB |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 262-Pin SO-DIMM |
| Memory Slots | 2 (2 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| vPro Support | |
| Display | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 3 x M.2 2280 |
| Total Installed Capacity | None |
| Solid State Storage | |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | 1 x PCIe 5.0 x16 (Available) |
| PCI Expansion in MPX Bays | |
| Optical Drive | None |
| I/O | |
| Ports | 6 x USB-A (USB 3.1/3.2 Gen 2) 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| USB Type-C | 2 x Thunderbolt 4 1 x USB 3.2 Gen 2x2 |
| Display | 1 x HDMI 2.1 |
| Audio | 4 x 1/8" / 3.5 mm Line Output |
| Built-In Speakers | |
| Built-In Microphones | |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (10GbE) 1 x RJ45 (2.5GbE) |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| MU-MIMO Support | |
| Bluetooth | 5.3 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | None |
| Pointing Device | None |
| General | |
| Security | |
| Power Supply | 750 W with IEC |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Certifications | |
| Mounting-Hole Pattern | |
| Dimensions | 13.3 x 12.5 x 5.1" / 337 x 318 x 129 mm |
| Weight |
