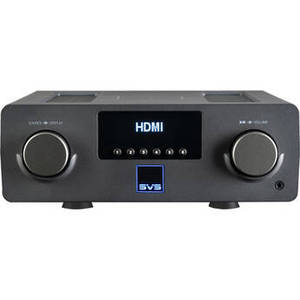

Prime Wireless Pro SoundBase Integrated Amplifier
Product Description
With a wide array of wired and wireless connection options, the Prime Wireless Pro SoundBase Integrated Amplifier from SVS supports traditional stereo audio or home theater integration, as well as modern audio streaming. The SoundBase features a 192kHz/24-bit DAC for audiophile-quality sound, and can power a pair of (optional) passive speakers up to 300W (150W x 2). You also have options when it comes to controlling the amplifier. You can use a mobile app, your voice, the included remote, or the front panel controls via a 3.15" wide OLED.
| Amplifier | |
| Amplifier Type | Integrated Amplifier (Preamp/Power Amp Combo) |
| Channels | 2.0 |
| Number of Subwoofer Channels | |
| Amplifier Class | Class-D |
| Power Output per Channel | 150 W at 4 Ohms |
| Dynamic Power per Channel | |
| Frequency Response | |
| THD+N | |
| THD | |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | Not Specified by Manufacturer |
| Tone Control | |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | |
| Dolby Compatibility | |
| Auro 3D Support | |
| Upmixing Technology | |
| Supported File Formats | |
| Supported Sample Rates | |
| DAC | 192 kHz / 24-Bit |
| Video | |
| HDR Compatibility | |
| Pass-Through Support | |
| Upscaling | |
| GUI | |
| Connectivity | |
| Rear A/V Inputs | 1 x HDMI 1 x Stereo RCA 1 x 1/8" / 3.5 mm Aux 1 x Optical TOSLINK |
| Rear A/V Outputs | 1 x RCA Subwoofer 1 x Stereo RCA |
| Front I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Headphone Output Power | |
| Other Rear I/O | 1 x RJ45 0 x 1/8" / 3.5 mm (Service) |
| Speaker Connectors | None |
| HDCP Support | None |
| HDMI Compression Modes | |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Media Card Slot | |
| A/B Speaker Selection | |
| Bi-Amp Capability | |
| Input Impedance | Phono, RCA: 20 Kilohms |
| Input Sensitivity | |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | |
| Dynamic Range | |
| Signal to Noise Ratio | 90 dB (1 V Input) |
| Total Harmonic Distortion (THD) | |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | Yes |
| Wireless Security | |
| Bluetooth | 5.0 |
| Bluetooth Profiles | |
| Supported Audio Codecs | AAC, aptX |
| Bluetooth Range | |
| Wireless Audio Protocols | DTS Play-Fi, Spotify Connect |
| DLNA Support | |
| Control | |
| External Control Support | |
| Virtual Assistant | Works with Alexa, Works with Google Assistant, Siri |
| App Compatible | Yes: Android & iOS *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Tuner Section | |
| Tuner Type | |
| Number of Tuner Presets | |
| Radio Frequencies | |
| Sensitivity | |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | |
| Physical | |
| Dimensions (W x H x D) | 9.1 x 3.2 x 8.8" / 230.8 x 82.0 x 223.8 mm |
| Weight |
