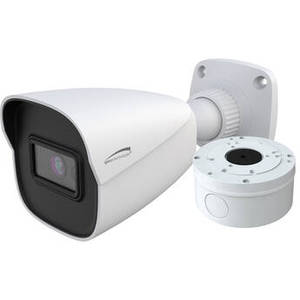

O4B6N 4MP Outdoor Network Bullet Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the white O4B6N 4MP Network Bullet Camera from Speco Technologies. This unit uses a 1/3" progressive scan CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. Smart IR provides up to 98' of night vision. The camera features a 2.8mm fixed lens that delivers a 95.3° horizontal field of view and a 3.5mm audio input. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot supports microSD cards up to 256GB (available separately).
Compliance with ONVIF profile T enables interoperability with a wide range of surveillance devices. This NDAA-compliant camera is housed in an IP67-rated enclosure that is suitable for outdoor use. A junction box is included for cable management.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Zoom | |
| Lens Field of View | Horizontal: 95.3° Vertical: 53.2° Diagonal: 115° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| DORI Coverage | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2592 x 1520 at 30 fps (10 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | Input: 1 x 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols | DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, PPPoE, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profile T |
| Analytics | Motion, Exception, Line Crossing, Region Intrusion, Museum Search, Vehicle/People Detection, Face Detection, People/Vehicle Counting |
| Built-In Installation Aids | |
| OS Compatibility | Windows iOS Android *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | None |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC/microP2 Hybrid [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | Cloud |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 7.5 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 98' / 29.9 m |
| Video Management Software | SecureGuard VMS & CMS for PC Applications, SecureGuard Client & Speco Blue for iOS & Android |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | H: 2.9 x W: 2.9 x L: 6.6" / H: 73.7 x W: 73.7 x L: 167.6 mm |
| Weight | 1 lb / 454 g |
