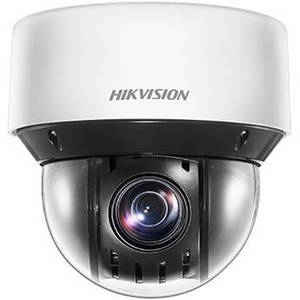

DS-2DE4A425IWG-E 4MP Outdoor PTZ Network Dome Camera with Night Vision

Product Description
Suitable for monitoring outdoor spaces such as rivers, forests, roadways, railways, airports, ports, squares, and parks as well as transit stations and other large venues, the DS-2DE4A425IWG-E 4MP PTZ Network Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. IR LEDs provide up to 164' of night vision. A 4.8-120mm varifocal lens delivers a 53.3 to 2.6° horizontal field of view. The camera features endless panning, a -5 to 90° tilt range, and 25x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This PTZ camera is housed in an IP66-rated enclosure that is suitable for safe outdoor use.
Camera | |
Sensor | 4 MP 1/2.8" CMOS |
Lens Mount | |
Focal Length | 4.8 to 120mm |
Maximum Aperture | f/1.6 |
Zoom | Optical: 25x Digital: 16x |
Lens Field of View | Horizontal: 53.3 to 2.6° Vertical: 30.6 to 1.5° Diagonal: 60.5 to 3° |
IR Cut Filter | Mechanical |
Day/Night | Yes |
Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
Shutter Speed | 1/30,000 to 1 Seconds |
Camera Angle Adjustment | |
Smart Specs | |
Smart Home Ecosystems | |
App Compatible | |
Cloud Platform | |
Desktop Software | |
Video | |
Multi-View Streaming | |
Video Modes | |
Streaming Resolution | 2560 x 1440 at 30 fps |
Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
Multi-View Streaming | Yes, 3 Streams |
Automatic Gain Control | Yes |
Video Output Connectors | |
Output Formats | |
Audio | |
1- or 2-Way Audio | Two-Way |
Audio Formats | AAC-LC, G.711, G.722.1, G.726, MP2L2, PCM |
Built-In Mic | |
Built-In Speaker | |
Audio I/O | |
Pan & Tilt | |
Up-the-Coax Communication | |
Presets | |
Supported Control Protocols | |
Pan/Tilt | Programmed Pan: 360° (0 to 360°) at 350°/s Programmed Tilt: 95° (-5 to 90°) at 200°/s |
Move Speed | |
Movement Range | |
Networking | |
Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, ISUP, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
Wireless | |
Frequency Range | |
Wi-Fi Bands | |
Wi-Fi Standards | |
CDMA 3G | |
GSM 3G/3.5G | |
4G LTE | |
5G NR | |
Bluetooth | |
Wireless Range | |
Encryption | |
System Integration | |
Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK, ISUP |
Analytics | Face Capture, Motion Detection, Video Tampering Alarm, Exception, Alarm I/O, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection, Smart Tracking |
Built-In Installation Aids | |
OS Compatibility | Android iOS *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms | |
Sensors | |
Sensor Range | |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
Data Streaming | Yes |
Alarm I/O | 2 / 2 |
Hardware | |
Memory | |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
Internal Storage | None |
External Storage Options | NAS |
Power | |
Power | |
Built-In Battery | |
Battery Type | |
Power Source | DC, PoE 802.3at (30 W) |
Power Consumption | 24 W |
Environmental | |
Operating Temperature | -22 to 149°F / -30 to 65°C |
Startup Temperature | |
Storage Temperature | |
Operating Humidity | 0 to 90% (Non-Condensing) |
IP Rating | IP66 |
IK Rating | |
General | |
Inputs/Outputs | 1 x RJ45 1 x Power |
Illumination | 850 nm IR LEDs up to 164' / 50 m |
Video Management Software | iVMS-4200, HikCentral Pro, Hik-Connect |
Supported Languages | |
Certifications | |
Material of Construction | |
Dimensions | �: 6.7 x H: 6.3" / �: 169.0 x H: 161.0 mm |
Weight | 5.4 lb / 2.45 kg |
