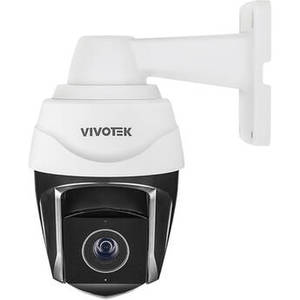

SD9384-EHL 5MP Outdoor Network PTZ Dome Camera with Night Vision & 4.9-148.2mm Lens
Product Description
The Vivotek SD9384-EHL 5MP Outdoor Network PTZ Dome Camera is intended for video surveillance in wide coverage areas such as airports, open city environments, and manufacturing facilities. SD9384-EHL is equipped with 656' IR illuminators and 30x optical zoom to capture details in any scene. The smart IR technology allows highly uniform IR intensity while avoiding hotspots.
Video surveillance in big areas has the potential for many incidents, SD9384-EHL's built-in Smart Tracking Advanced AI technology enables you to identify risks and track a suspected person automatically in real time. SD9384-EHL's camera body is protected with IP66, IK10, and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40°F to 122°F for operation in extreme weather conditions.
Video surveillance in big areas has the potential for many incidents, SD9384-EHL's built-in Smart Tracking Advanced AI technology enables you to identify risks and track a suspected person automatically in real time. SD9384-EHL's camera body is protected with IP66, IK10, and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40°F to 122°F for operation in extreme weather conditions.
| Camera | |
| Sensor | 5 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 4.9 to 148.2mm |
| Maximum Aperture | f/1.3 to 4.6 |
| Zoom | Optical: 30x |
| Lens Field of View | Horizontal: 54.1 to 1.9° Vertical: 41.2 to 1.4° Diagonal: 65.7 to 2.4° |
| IR Cut Filter | |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.03 Lux B&W: 0.005 Lux |
| Shutter Speed | 1/100000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 30 fps 2560 x 1440 at 30 fps 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Programmed Pan: 360° at 450°/s Programmed Tilt: 110° (-20 to 90°) at 450°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTCIP, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | |
| Built-In Installation Aids | Remote Focus, Remote Zoom |
| OS Compatibility | Windows 7 Windows 8 Windows 10 macOS 10.12 *As of December, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Notification |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | 2 GB RAM / 8 MB Flash |
| Media/Memory Card Slot | |
| Internal Storage | |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, DC, PoE 802.3bt (60 W) |
| Power Consumption | AC: 51 W DC: 51 W PoE: 51 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | -40 to 131°F / -40 to 55°C |
| Storage Temperature | |
| Operating Humidity | 98% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | up to 656.2' / 200 m |
| Video Management Software | |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 10.1 x H: 13.2" / �: 256.0 x H: 336.0 mm |
| Weight | 15.7 lb / 7.1 kg |
