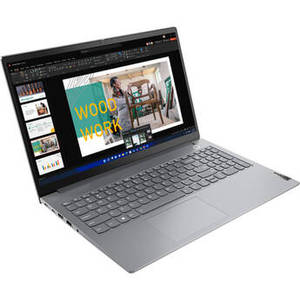

15.6" ThinkBook 15 G4 ABA Multi-Touch Laptop
Product Description
Streamline your workflow and attach wired accessories to the two USB 3.2 Gen 1 Type-A and two Gen 2 Type-C ports. Wireless peripherals can be connected via Bluetooth 5.2 technology. Connect to a wireless network with Wi-Fi 6 support, or connect to a wired connection using the Gigabit Ethernet port. An HDMI port is available to extend or mirror your screen space and create a multi-display setup. Access MMC, SD, SDHC and SDXC memory cards using the 4-in-1 card reader. The 1080p HD webcam, dual speakers, and dual-mic array allow you to stay in touch with colleagues and family. In addition to a webcam shutter, safety measures include a power-on button, a fingerprint reader, TPM security, and a Kensington Lock slot. The Lenovo 15.6" ThinkBook 15 G4 ABA runs on the Windows 11 Pro (64-bit) operating system.
| Operating System | Windows 11 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | AMD Ryzen 7 5825U |
| CPU Socket | |
| CPU | 2 to 4.5 GHz 8-Core |
| L3 Cache | 16 MB |
| Graphics Type | Integrated |
| GPU | AMD Radeon |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 1 x 8 GB (Onboard) 1 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | 40 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 1 (0 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| vPro Support | |
| Display | |
| Panel Type | IPS-Type LCD |
| Size | 15.6" |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 300 cd/m2 |
| Color Gamut | 45% NTSC |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | None |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2242 PCIe 3.0 x4 (In Use) 1 x M.2 2280 PCIe 3.0 x4 (Available) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| USB Type-C | 2 x USB 3.1/3.2 Gen 2 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 2.1 |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | 2 x 2 W |
| Built-In Microphones | 2 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC/Memory Stick Duo Hybrid |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 1080p |
| Battery | |
| Capacity | 45 Wh |
| Estimated Battery Life | 8 Hours |
| Keyboard & Mouse | |
| Keyboard | Notebook Keyboard with Backlight |
| Pointing Device | TouchPad |
| General | |
| Security | Dedicated Hardware TPM Security Chip, Fingerprint Reader, Kensington Lock Slot, Privacy Screen |
| Power Supply | 65 W with USB-C |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | |
| Operating Humidity | |
| Certifications | |
| Mounting-Hole Pattern | |
| Dimensions | 14.1 x 9.3 x 0.7" / 357 x 235 x 18.9 mm |
| Weight | 3.75 lb / 1.7 kg |
