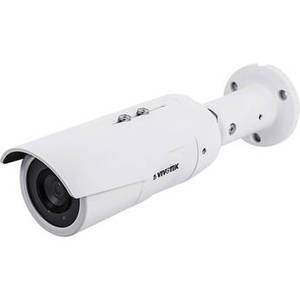

IB9389-EH-v2 5MP Outdoor Network Bullet Camera with Night Vision & Heater
Product Description
Monitor an indoor or outdoor area with the IB9389-EH-v2 5MP Network Bullet Camera from Vivotek. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. Four IR LEDs provide up to 98' of night vision. The camera's 3.6mm fixed lens delivers a 76° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.
| Camera | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | |
| Focal Length | 3.6mm |
| Maximum Aperture | f/2 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 76° Vertical: 56° Diagonal: 100° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.06 Lux B&W: 0 Lux |
| Shutter Speed | 1/32,000 to 1/5 Seconds |
| Camera Angle Adjustment | Vertical: 0 to 90° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 30 fps 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection, Human Detection, Time Filter |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 to 10 macOS 12 *As of October, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | None |
| Hardware | |
| Memory | 1 GB RAM / 8000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | PoE: 11 W (With Heater) |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | -22 to 122°F / -30 to 50°C |
| Storage Temperature | |
| Operating Humidity | 98% (Non-Condensing) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | 4 x IR LEDs up to 98.4' / 30 m |
| Video Management Software | |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 3.4 x L: 11.8" / �: 86.0 x L: 300.0 mm |
| Weight | 2.2 lb / 1 kg |
