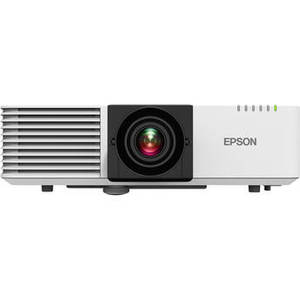

PowerLite L530U 5200-Lumen WUXGA Education & Corporate Laser 3LCD Projector
Product Description
Enjoy bright, vibrant images in most classroom and office settings with the Epson PowerLite L530U 5200-Lumen WUXGA Education & Corporate Laser 3LCD Projector. Its 5200 lumens of brightness, combined with its 2,500,000:1 dynamic contrast ratio, overcome ambient light in most installations and retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution ensures that images and text are clear at most viewing distances.
The L530U features HDBaseT, two VGA, and two HDMI inputs for connecting various source devices. One VGA input can also act as an output to enable another display or projector to show the same content. The onboard 10W speaker enables audio to accompany your presentations without using external speakers. An HDMI cable and an IR remote control are included for added convenience.
The L530U features HDBaseT, two VGA, and two HDMI inputs for connecting various source devices. One VGA input can also act as an output to enable another display or projector to show the same content. The onboard 10W speaker enables audio to accompany your presentations without using external speakers. An HDMI cable and an IR remote control are included for added convenience.
| Image Display | |
| Display System | 3-Chip 0.67" Polysilicon TFT LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Minimum: 640 x 480 Maximum: 4K UHD - 3840 x 2160 |
| Maximum Brightness | White: 5200 Lumens (ISO) Color: 5200 Lumens |
| Uniformity | 86% |
| Aspect Ratio | Native: 16:10 Supported: 16:6 |
| Dynamic Contrast Ratio | 2,500,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 135 kHz Vertical: 23.98 to 85 Hz |
| Lens | |
| Focus | Manual |
| Lens | f/1.5 - 1.7 (f = 20 - 31.8 mm) |
| Lens Shift | Vertical: ± 50% Horizontal: ± 20% |
| Optical Zoom | Manual: 1.6x |
| Throw Ratio | 1.35 to 2.2:1 (80" Screen Size @ 7.64' / 2.33 m) |
| Projection Size | 50 - 500" / 127.0 - 1270.0 cm |
| Features | |
| Keystone Correction | Horizontal: ± 30° Vertical: ± 30° |
| Supported HDR Input Formats | None |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |
| Projection Tilt Option | Yes |
| Input/Output Connectors | |
| Inputs/Outputs | 1 x RJ45 (HDBaseT) Audio, Control, Data, Power, Service, Video 2 x HDMI (HDMI) Audio, Video Input 1 x HDMI (HDMI) Audio, Video Output 1 x DE-15/DB-15 (VGA) Video Input 1 x DE-15/DB-15 (VGA) Video Input/Output 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB-A (USB 2.0) Data 1 x USB-A (USB 2.0) Power Output 1 x USB-B (USB 2.0) Service Input 1 x RJ45 (Ethernet) LAN 1 x DE-9/DB-9 (RS-232) Control |
| Hardware | |
| Processor | |
| CPU | |
| Wireless LAN / Wi-Fi | Yes, Built-in |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise | Full Brightness: 31 dB Low Brightness: 23 dB |
| Security | Cable Lock Slot Security Bar |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Consumption | Full Brightness: 301 W Full Brightness: 232 W Standby Mode (Lamp Off): 2 W |
| Operating Altitude | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Dimensions (W x H x D) | 17.3 x 4.8 x 12.0" / 43.9 x 12.2 x 30.5 cm Excluding Feet 17.3 x 5.4 x 12.6" / 43.9 x 13.7 x 32.0 cm Including Feet |
| Weight | 18.1 lb / 8.2 kg |
