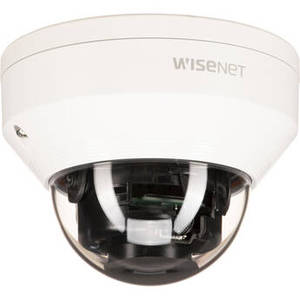

WiseNet LNV-6012R 2MP Outdoor Network Dome Camera with Night Vision
Product Description
Watch your property with the white WiseNet LNV-6012R 2MP Outdoor Network Dome Camera with Night Vision from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 2.8mm fixed lens, this camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 113.7 x 61.5° field of view. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 98'.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. PoE technology simplifies setup by enabling you to run just one cable for both data and power, while a microSD card slot allows for edge storage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. PoE technology simplifies setup by enabling you to run just one cable for both data and power, while a microSD card slot allows for edge storage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 113.7° Vertical: 61.5° Diagonal: 134.4° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0 Lux |
| Shutter Speed | |
| Camera Angle Adjustment | Horizontal: 0 to 350° Vertical: 0 to 67° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps (H.264) 1920 x 1080 at 2 fps (MJPEG) 1280 x 960 at 3 fps (MJPEG) |
| Supported Video Compression | H.264, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | SUNAPI (HTTP API) |
| Analytics | Tamper and Motion Detection |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.12 to 10.14 *As of March, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | 512 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC [32 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 6.4 W |
| Environmental | |
| Operating Temperature | -22 to 131°F / -30 to 55°C |
| Startup Temperature | -4°F / -20°C |
| Storage Temperature | -22 to 131°F / -30 to 55°C |
| Operating Humidity | 89% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | IR LEDs up to 98.4' / 30 m |
| Video Management Software | |
| Supported Languages | Czech Dutch English French German Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Traditional Chinese Turkish |
| Certifications | |
| Material of Construction | Aluminum, Plastic |
| Dimensions | �: 4.7 x H: 3.6" / �: 120.3 x H: 91.7 mm |
| Weight | 0.9 lb / 410 g |
