GV-EBD4813 4MP Outdoor Network Turret Camera with Night Vision & 2.7-13.5mm Lens
Product Description

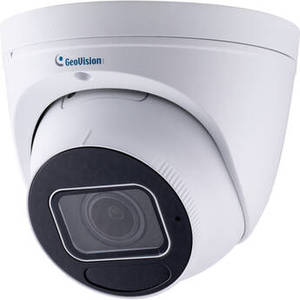

Monitor an indoor or outdoor area with the GV-EBD4813 4MP Outdoor Network Turret Camera from GEOVISION. This unit uses a super low-lux 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. Two IR LEDs provide up to 130' of night vision. The camera's 2.7-13.5mm motorized varifocal lens provides a 98 to 31° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.7 to 13.5mm |
| Maximum Aperture | f/1.2 |
| Zoom | Optical: 5x |
| Lens Field of View | Horizontal: 98 to 31° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.002 Lux B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 75° |
| Video | |
| Streaming Resolution | 2688 x 1520 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | |
| Built-In Installation Aids | |
| OS Compatibility | iOS Android Windows *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 7 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Video Management Software | GV-VMS (V17.4.2/V18.2.1), GV-DVR/NVR (V8.9.1), GV-Control Center (V3.8.0), GV-Recording Server/Video Gateway (V2.0.0), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Redundant/Failover Server (V1.2.0), GV-Mobile Server (V1.5.1), GV-Eye for iOS & Android |
| Supported Languages | Czech English French German Hungarian Italian Japanese Polish Portuguese Russian Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 5.1 x H: 4.3" / �: 129.0 x H: 110.0 mm |
| Weight | 1.52 lb / 0.69 kg |
