Product Description

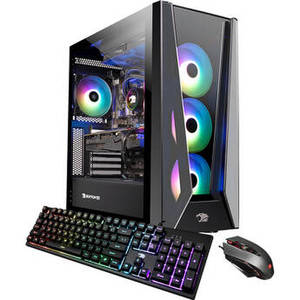

An Intel Core i7 13700KF processor lays at the heart of the Trace 5 MR, giving you up to 5.4 GHz max frequency so you can run a wide range of games with ease. With 16GB of 3200 MHz DDR4 dual-channel RAM, you can experience enhanced multitasking and render speeds. One 1TB M.2 PCIe NVMe SSD gives you ample room to save a wide range of games and files. An NVIDIA GeForce RTX 3070 graphics card features 8GB of GDDR6 VRAM, providing you with clear and smooth graphics with enhanced AI features such as DLSS, ray tracing, and more. An array of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 ports provide you with peripheral support, allowing you to use a wide range of devices such as the included mouse and keyboard, audio interfaces, and more. Connect to your network with Wi-Fi 5 (802.11ac) wireless connectivity or the 2.5 Gigabit Ethernet port for a reliable wired connection.
| Operating System | Windows 11 Home |
| Model Year | Late 2022 |
| Performance | |
| CPU Architecture | x86 |
| Chipset | Intel Z790 |
| Processor | Intel Core i7 13700KF (13th Gen) |
| CPU Socket | LGA 1700 |
| CPU | 3.4 to 5.4 GHz Performance 8-Core 2.5 to 4.2 GHz Efficiency 8-Core |
| L3 Cache | 30 MB |
| Graphics Type | Dedicated |
| GPU | NVIDIA GeForce RTX 3070 with 8 GB GDDR6 VRAM |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 2 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | 128 GB |
| Memory Slot Type | 288-Pin DIMM |
| Memory Slots | 4 (2 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| vPro Support | |
| Display | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | |
| Total Installed Capacity | 1 TB |
| Solid State Storage | 1 x 1 TB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 1 x PS/2 4 x USB-A (USB 2.0) 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1 x USB-A (USB 3.1/3.2 Gen 2) |
| USB Type-C | 1 x USB 3.2 Gen 2x2 |
| Display | 4 x DisplayPort 2 x HDMI |
| Audio | 6 x 1/8" / 3.5 mm Line Input/Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (2.5GbE) |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| MU-MIMO Support | Yes |
| Bluetooth | None |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | Full-Size Keyboard |
| Pointing Device | USB Mouse |
| General | |
| Security | |
| Power Supply | 700 W with IEC |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Certifications | |
| Mounting-Hole Pattern | |
| Dimensions | 19.3 x 18.9 x 8.66" / 49 x 48 x 22 cm |
| Weight | 35 lb / 15.9 kg |
