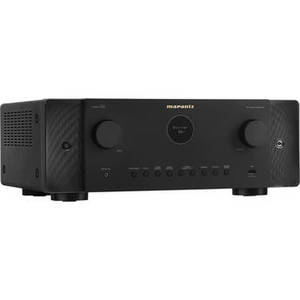

CINEMA 60 7.2-Channel Network A/V Receiver
Product Description
Supporting a wide range of audio formats, technologies, and object-based surround sound, the Marantz CINEMA 60 7.2-Channel Network A/V Receiver can deliver lifelike and immersive room-filling sound for your movies, shows, and music. The CINEMA 60 supports up to 8K HDR video and advanced audio formats, such as Dolby Atmos and DTS:X. You can also wirelessly stream music and other audio from a wide variety of online music sources. Your audio is powered through the speakers in your room at 100W per channel, or through your home using HEOS built-in streaming to compatible HEOS wireless speakers, and everything is conveniently controlled via the included remote, your mobile device, or by voice command.
| Amplifier | |
| Amplifier Type | |
| Channels | 7.2 |
| Number of Subwoofer Channels | |
| Amplifier Class | Class-AB |
| Power Output per Channel | 2-Channel Driven: 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 2-Channel Driven: 140 W at 6 Ohms / 1 kHz / 0.7% THD 1-Channel Driven: 200 W at 6 Ohms / 1 kHz / 10% THD |
| Dynamic Power per Channel | |
| Frequency Response | |
| THD+N | |
| THD | |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | |
| Tone Control | |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD |
| Auro 3D Support | No |
| Upmixing Technology | Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology |
| Supported File Formats | AAC, ALAC, FLAC, MP3, WAV, WMA |
| Supported Sample Rates | |
| DAC | |
| Video | |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| Pass-Through Support | |
| Upscaling | 1080p to 8K UHD |
| GUI | Yes |
| Connectivity | |
| Rear A/V Inputs | 3 x HDMI 2.1 3 x HDMI 4 x Stereo RCA 1 x Stereo RCA (Phono MM) with Ground Screw 2 x Optical TOSLINK 2 x Digital Coaxial |
| Rear A/V Outputs | 1 x HDMI 2.1 1 x HDMI Zone 2 2 x RCA Subwoofer |
| Front I/O | 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input 1 x USB-A Input/Output |
| Headphone Output Power | |
| Other Rear I/O | 2 x Bluetooth/Wi-Fi Coaxial F-Type Input 1 x RJ45 (Ethernet) Input 1 x DE-9 (RS-232C) Input 1 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x 1/8" / 3.5 mm (IR) Input 1 x RCA (Remote) Input 1 x RCA (Remote) Output 1 x AM Block 1 x FM Coaxial F-Type |
| Speaker Connectors | 7 x Binding Post Pair |
| HDCP Support | Version 2.3 |
| HDMI Compression Modes | Not Specified by Manufacturer |
| Audio Return Channel (ARC) | eARC |
| HDMI CEC | Yes |
| Media Card Slot | None |
| A/B Speaker Selection | Yes |
| Bi-Amp Capability | Yes |
| Input Impedance | |
| Input Sensitivity | |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | |
| Dynamic Range | |
| Signal to Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | Yes |
| Wireless Security | |
| Bluetooth | Yes |
| Bluetooth Profiles | |
| Supported Audio Codecs | |
| Bluetooth Range | |
| Wireless Audio Protocols | AirPlay 2, HEOS, Roon Ready, Spotify Connect |
| DLNA Support | |
| Control | |
| External Control Support | Android/iOS Control App |
| Virtual Assistant | Works with Alexa, Works with Google Assistant, Siri |
| Tuner Section | |
| Tuner Type | |
| Number of Tuner Presets | |
| Radio Frequencies | |
| Sensitivity | |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | 120 VAC, 60 Hz |
| AC Power Output | |
| Power Consumption | Active: 650 W No Sound (ECO On): 45 W No Sound (ECO Off): 75 W Bluetooth Standby: 0.2 W CEC Standby: 0.5 W Network Standby: 2 W |
| Physical | |
| Dimensions (W x H x D) | 17.4 x 6.5 x 13.5" / 442.0 x 165.0 x 343.0 mm (Antenna Removed) 17.4 x 9.3 x 13.9" / 442.0 x 235.0 x 354.0 mm (Antenna Up) |
| Weight | 24 lb / 10.9 kg |
