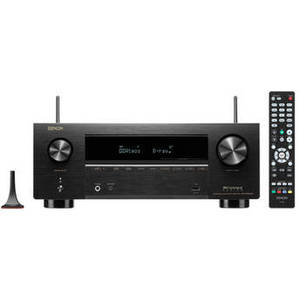

AVR-X2800H 7.2-Channel Network A/V Receiver
Product Description
Increase the capabilities of your home theater and enjoy whole-home music with the AVR-X2800H 7.2-Channel Network A/V Receiver from Denon. When it comes to movies and shows, you have options with the AVR-X2800H, as it supports 7.2-channel speaker setups, as well as immersive 5.2.2-channel configurations with support for Dolby Atmos and DTS:X for height-based surround. The receiver delivers on high-end video as well, with up to 8K video support on three of the six HDMI inputs and both outputs. Add in HEOS built-in for wireless audio in any room, and you have a quality centerpiece to your home's entertainment options.
| Amplifier | |
| Amplifier Type | |
| Channels | 7.2 Object-Based Configuration: 5.2.2 |
| Number of Subwoofer Channels | |
| Amplifier Class | |
| Power Output per Channel | 2-Channel Driven: 95 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 125 W at 6 Ohms / 1 kHz / 0.7% THD 1-Channel Driven: 185 W at 6 Ohms / 1 kHz / 10% THD |
| Dynamic Power per Channel | |
| Frequency Response | |
| THD+N | |
| THD | |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | |
| Tone Control | |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD |
| Auro 3D Support | No |
| Upmixing Technology | Dolby Surround, DTS Neural:X |
| Supported File Formats | 2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA via USB |
| Supported Sample Rates | |
| DAC | |
| Video | |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| Pass-Through Support | 8K |
| Upscaling | None |
| GUI | Yes |
| Connectivity | |
| Rear A/V Inputs | 3 x HDMI 2.1 3 x HDMI 2 x Optical TOSLINK 1 x Digital Coaxial 4 x Stereo RCA 1 x Stereo RCA (Phono MM) with Ground Screw |
| Rear A/V Outputs | 2 x HDMI 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone 2 Pre-Out |
| Front I/O | 1 x USB-A Input/Output 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input |
| Headphone Output Power | |
| Other Rear I/O | 2 x Bluetooth/Wi-Fi Coaxial F-Type Input/Output 1 x FM Coaxial F-Type Input 1 x AM Block Input 1 x RJ45 (Ethernet) Input/Output 1 x 1/8" / 3.5 mm (Remote) Input 1 x 1/8" / 3.5 mm (Remote) Output 1 x DE-9 (RS-232C) Input |
| Speaker Connectors | 7 x Binding Post Pairs (Front, Center, Rear, Rear Surround) |
| HDCP Support | Version 2.3 |
| HDMI Compression Modes | 4K120AB / 8K60AB |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Media Card Slot | None |
| A/B Speaker Selection | |
| Bi-Amp Capability | Yes |
| Input Impedance | |
| Input Sensitivity | |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | |
| Dynamic Range | |
| Signal to Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | |
| Wireless Security | |
| Bluetooth | Yes |
| Bluetooth Profiles | |
| Supported Audio Codecs | |
| Bluetooth Range | |
| Wireless Audio Protocols | AirPlay 2, HEOS, Roon Ready, Spotify Connect |
| DLNA Support | |
| Control | |
| External Control Support | Android/iOS Control App |
| Virtual Assistant | Apple AirPlay, Works with Alexa, Works with Google Assistant, Josh.ai, Siri |
| Tuner Section | |
| Tuner Type | AM, FM |
| Number of Tuner Presets | |
| Radio Frequencies | |
| Sensitivity | |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | |
| AC Power Output | |
| Power Consumption | Active: 500 W No Sound (ECO On): 35 W No Sound (ECO Off): 75 W Standby: 0.1 W CEC Standby: 0.5 W Network Standby: 2 W |
| Physical | |
| Dimensions (W x H x D) | 17.1 x 6.6 x 13.0" / 43.4 x 16.8 x 33.0 cm (Antenna Removed) 17.1 x 9.3 x 13.4" / 43.4 x 23.6 x 34.0 cm (Antenna Up) |
| Weight | 21 lb / 9.5 kg |
