Product Description

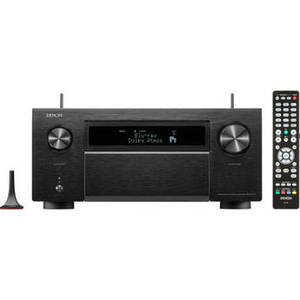

If you're looking to power an expansive home theater, the AVR-A1H 15.4-Channel Network A/V Receiver from Denon delivers support for up to 8K/60p or 4K/120p video from seven different HDMI inputs, and immersive surround sound. The AVR-A1H supports room-filling 15.4-channel surround, up to a 9.4.6-channel configuration, taking advantage of Dolby Atmos and DTS:X for dedicated height effects. With HEOS and multi-zone audio built-in, you can expand you can send audio throughout your home, via connected components or via wireless streaming.
| Amplifier | |
| Amplifier Type | |
| Channels | 15.4 Object-Based Configuration: 9.4.6 |
| Number of Subwoofer Channels | |
| Amplifier Class | |
| Power Output per Channel | 2-Channel Driven: 150 W at 8 Ohms / 20 Hz to 20 kHz / 0.05% THD 190 W at 6 Ohms / 1 kHz / 0.7% THD 1-Channel Driven: 260 W at 6 Ohms / 1 kHz / 10% THD |
| Dynamic Power per Channel | |
| Frequency Response | |
| THD+N | |
| THD | |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | |
| Tone Control | |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, IMAX Enhanced |
| Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD |
| Auro 3D Support | Yes |
| Upmixing Technology | Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology |
| Supported File Formats | AAC, ALAC, FLAC, MP3, WAV, WMA |
| Supported Sample Rates | |
| DAC | |
| Video | |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| Pass-Through Support | 8K |
| Upscaling | None |
| GUI | Yes |
| Connectivity | |
| Rear A/V Inputs | 7 x HDMI 2 x Optical TOSLINK 2 x Digital Coaxial 5 x Stereo RCA Line 1 x Stereo XLR Balanced Line 1 x Stereo RCA (Phono) with Ground Screw |
| Rear A/V Outputs | 2 x HDMI 2.1 1 x HDMI Zone 2 1 x 17-Channel RCA Pre-Out 2 x Stereo RCA Zone 2 / Zone 3 Pre-Out 4 x Mono XLR Subwoofer Pre-Out 4 x RCA Subwoofer Pre-Out |
| Front I/O | 1 x USB-A Input 1 x 1/8" / 3.5 mm Setup Mic Input 1 x 1/4" / 6.35 mm Headphone Output |
| Headphone Output Power | |
| Other Rear I/O | 1 x AM Block Input 1 x FM Coaxial F-Type Input 2 x Bluetooth/Wi-Fi Coaxial F-Type Input 1 x RJ45 (Ethernet) Input/Output 2 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x 1/8" / 3.5 mm (Remote) Input 1 x 1/8" / 3.5 mm (Remote) Output 1 x DE-9 (RS-232C) Input 1 x USB-A (Power) Output 1 x NEMA 1-15 (Power) Input |
| Speaker Connectors | 17 x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround) |
| HDCP Support | Version 2.3 |
| HDMI Compression Modes | 4K120AB / 8K60AB |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Media Card Slot | |
| A/B Speaker Selection | Yes |
| Bi-Amp Capability | Yes |
| Input Impedance | |
| Input Sensitivity | |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | |
| Dynamic Range | |
| Signal to Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | Yes |
| Wireless Security | |
| Bluetooth | Yes |
| Bluetooth Profiles | |
| Supported Audio Codecs | |
| Bluetooth Range | |
| Wireless Audio Protocols | AirPlay 2, HEOS, Roon Ready, Spotify Connect |
| DLNA Support | |
| Control | |
| External Control Support | |
| Virtual Assistant | Alexa Built-in, Google Assistant Built-in |
| Tuner Section | |
| Tuner Type | AM, FM |
| Number of Tuner Presets | |
| Radio Frequencies | |
| Sensitivity | |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | |
| AC Power Output | |
| Power Consumption | Active: 900 W No Sound (ECO On): 70 W No Sound (ECO Off): 125 W Standby: 0.1 W CEC Standby: 0.5 W Network Standby: 2 W |
| Physical | |
| Dimensions (W x H x D) | 17.1 x 7.7 x 19.6" / 43.4 x 19.6 x 49.8 cm (Antenna Down) 17.1 x 10.2 x 19.4" / 43.4 x 25.9 x 49.3 cm (Antenna Up) 17.1 x 7.7 x 19.4" / 43.4 x 19.6 x 49.3 cm (Antenna Removed) |
| Weight | 70.5 lb / 32 kg |
