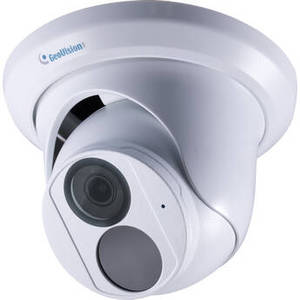

GV-EBD4704 4MP Outdoor Network Turret Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the GV-EBD4704 4MP Network Turret Camera from GEOVISION. This unit uses a low-lux 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. A single IR LED provides up to 100' of night vision. The camera's 2.8mm fixed lens provides a 101° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for safe outdoor use.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Zoom | |
| Lens Field of View | Horizontal: 101° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.003 Lux B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 90° |
| Video | |
| Streaming Resolution | 2688 x 1520 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Motion Detection, Tampering Alarm, Audio Detection, Line Crossing, Intrusion |
| Built-In Installation Aids | |
| OS Compatibility | Windows iOS Android *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 6 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | |
| Operating Humidity | 10 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Video Management Software | Compatible with GV-VMS (V17.4.1/V18.2.1), GV-DVR/NVR (V8.9.1), GV-Control Center (V3.8.0), GV-Recording Server/Video Gateway (V2.0.0), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Redundant/Failover Server (V1.2.0), GV-Mobile Server (V1.5.0.0) |
| Supported Languages | Czech English French German Hungarian Italian Japanese Polish Portuguese Russian Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 5.0 x H: 3.6" / �: 126.0 x H: 92.7 mm |
| Weight | 0.99 lb / 0.45 kg |
