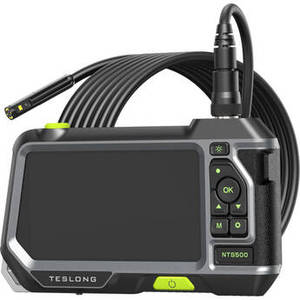

NTS500 Dual-Lens Inspection Camera with 5" Screen
Product Description
Safely inspect hard-to-reach spaces using this NTS500 Dual-Lens Inspection Camera with 5" Screen from Teslong. The camera system consists of an endoscope camera with a lens on the front and one on the side with built-in LEDs, plus a 5" monitor with a handgrip. The camera fits into small places for a variety of applications, including plumbing, appliances, or automotive maintenance.
The lens probe has a tiny 0.21" diameter, and it is IP67 waterproof so it can fit into small pipes and areas. The 5" display features strong tempered glass and is mounted onto a handgrip that allows you to view what the probe is seeing. The 32GB microSD card allows you to record 720p video or 1080p photos. An LED flashlight on the handgrip illuminates your operation in dark environments. The built-in 3500mAh battery provides up to 4.5 hours of runtime.
| Quantity | 1 |
| General | |
| Compatibility | |
| Depth of Field | Straight-Viewing Camera: 1.18 to 3.94" / 30 to 100 mm Side-Viewing Camera: 0.4 to 0.79" / 10 to 20 mm |
| Video Format | 1280 x 720 |
| Image Format | 1920 x 1080 |
| Display | |
| Panel Type | IPS-Type LCD |
| Size | 5" |
| Resolution | 1280 x 720 |
| Touchscreen | No |
| Viewing Angle (H x V) | |
| Maximum Brightness | |
| Inputs / Outputs | |
| Connector 1 | |
| Connector 2 | |
| USB I/O | 1 x Micro-USB (Power Only) Female Output |
| Video I/O | |
| Audio I/O | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC [Class 10/U1/V10 or Faster Recommended] |
| Charging Input | 1 x Micro-USB |
| Wireless | |
| Wi-Fi | |
| Bluetooth | |
| App Compatible | |
| Global Positioning (GPS, GLONASS, etc.) | |
| Battery | |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 3500 mAh |
| Output Voltage | |
| Cells | |
| Charging Power | |
| Recharge Time | |
| Maximum Battery Life | 6 Hours |
| Power | |
| Power Source | |
| Power I/O | |
| Center Tip Polarity | |
| Battery Type | |
| AC Input Power | |
| DC Input Power | 5 VDC at 1 A |
| Power Consumption | |
| Operating Current | |
| Maximum Power Output | |
| Environmental | |
| IP Rating | IP67 |
| IK Rating | |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | |
| Operating Altitude | |
| Charging Temperature | |
| Discharging Temperature | |
| Storage Temperature | |
| Storage Humidity | |
| Storage Altitude | |
| Physical | |
| Size | |
| Mounting | |
| Load Capacity | |
| Color | |
| Material of Construction | |
| Cable Length | 9.8' / 298.7 cm |
| Dimensions | 0.2" / 5.5 mm (Camera Diameter) |
| Weight | Not Specified by Manufacturer |
