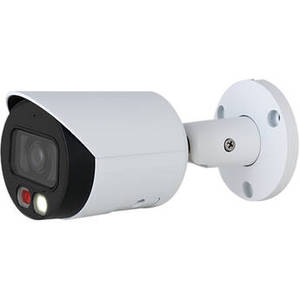

WizSense VU-MORE N42DDS2 4MP Outdoor Network Bullet Camera
Product Description
Monitor an indoor or outdoor area with the WizSense VU-MORE N42DDS2 4MP Network Bullet Camera from Dahua Technology. This unit uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 20 fps. An IR LED provides up to 98' of low-light illumination. Additionally, a white light provides up to 49' of illumination for recording full color video at night. The camera's 2.8mm fixed lens delivers a 95° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles S and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Zoom | |
| Lens Field of View | Horizontal: 95° Vertical: 52° Diagonal: 114° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.008 Lux B&W: 0.0008 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| Video | |
| Streaming Resolution | 2688 x 1520 at 20 fps (6.144 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711, G.726, PCM |
| Built-In Mic | Yes |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, User Access Log |
| Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, P2P, RTCP, RTMP, RTP, RTSP, SFTP, SMTP, TCP, UDP, syslog |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & T, CGI, P2P, Milestone, SDK, API |
| Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Perimeter Protection (Tripwire, Intrusion), Intelligent Search, Smart Motion Detection+ |
| Built-In Installation Aids | |
| OS Compatibility | iOS Android *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Memory | 128 MB RAM / 128 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 5.2 W PoE: 5.9 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Video Management Software | DSS, DMSS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 2.8 x L: 6.5" / �: 70.0 x L: 166.2 mm |
| Weight | 1.06 lb / 0.48 kg |
