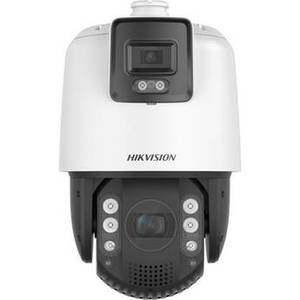

TandemVu DS-2SE7C432MW-AEB 4MP Outdoor PTZ Network Dome Camera with Night Vision, Heater & Demister
Product Description
Suitable for monitoring outdoor spaces such as rivers, roads, railways, airports, squares, parks, and other large venues, the TandemVu DS-2SE7C432MW-AEB 4MP PTZ Network Dome Camera from Hikvision combines a PTZ channel and a panoramic channel in one unit. The camera captures 4MP resolution video at 30 fps via a 5.9-188.8mm varifocal lens for the PTZ channel and a 4mm fixed lens for the panoramic channel. IR LEDs provide up to 490' of night vision on the PTZ channel, while up to 98' of white light illumination is provided on the panoramic channel. The PTZ channel features endless panning, a -15 to 90° tilt range, and 32x optical zoom.
Compliance with ONVIF profiles G and S enables interoperability with a wide range of surveillance devices. This camera is housed in an IP66- and IK10-rated (excluding glass window) enclosure that is suitable for outdoor use in areas at risk of vandalism. It is equipped with a demister, along with an integrated heater that ensures the camera will be operational in temperatures as low as -22°F.
| Camera | |
| Image Sensor | Panoramic Channel: 1/2.8" Progressive Scan CMOS PTZ Channel: 1/1.8" Progressive Scan CMOS |
| Minimum Illumination | Panoramic Channel 0.0005 Lux at f/1.0 with AGC, 0 Lux with Light PTZ Channel Color: 0.005 Lux at f/1.5 with AGC B&W: 0.001 Lux at f/1.5 with AGC, 0 Lux with IR |
| Shutter Speed | 1/30,000 to 1 Second |
| Slow Shutter | Yes |
| Focus | Semi-Auto, Manual, Auto |
| Day/Night | IR Cut Filter |
| Day/Night Switching | Day, Night, Auto, Scheduled Switch |
| Backlight Compensation | Yes |
| Wide Dynamic Range | 120 dB |
| Highlight Compensation | Yes |
| 3D-DNR | Yes |
| Defog | Yes |
| Electronic Image Stabilization | Yes |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Image Settings | Saturation, Brightness, Contrast, Sharpness |
| Image Parameters Switch | Yes |
| White Balance | Auto, ATW, Sodium Lamp, Fluorescent Lamp, Indoor, Outdoor, MWB, Locked WB |
| Zoom | PTZ Channel: 32x Optical, 16x Digital |
| S/N Ratio | >52 dB |
| General Functions | Mirror, Password Protection, Watermark, IP Address Filter |
| Lens | |
| Focal Length | Panoramic Channel: 4mm PTZ Channel: 5.9-188.8mm |
| Zoom Speed | PTZ Channel: Approximately 5.6 Seconds |
| Field of View | Panoramic Channel Horizontal: 79° Vertical: 42.4° PTZ Channel: 60.2 to 2.3° (Wide to Tele) |
| Aperture | Panoramic Channel: f/1.0 PTZ Channel: f/1.5 |
| Illuminator | |
| Light Supplement | Panoramic Channel: White Light PTZ Channel: IR |
| Light Distance | Panoramic Channel: Up to 98' / 30 m PTZ Channel: Up to 490' / 150 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Pan | 360° |
| Tilt | 15 to 90° (Auto Flip) |
| Pan Speed | 0.1 to 160°/s Configurable Pan Speed 240°/s Preset Pan Speed |
| Tilt Speed | 0.1 to 120°/s Configurable Tilt Speed 200°/s Preset Tilt Speed |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, Up to 32 Presets for each Patrol |
| Pattern Scan | 4 Pattern Scans |
| Power-Off Memory | Yes |
| Park Action | Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Tasks | Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan, Dome Reboot, Dome Adjust, Aux Output |
| Exception Detections | IP Address Conflict, HDD Full, Illegal Login, HDD Error, Network Disconnected |
| DORI Distance | |
| Detection Range | 10,039' |
| Observation Range | 3984' |
| Recognition Range | 2008' |
| Identification Range | 1004' |
| Video | |
| Maximum Resolution | 2560 x 1440 |
| Stream Type | Main Stream, Sub-Stream, Third Stream |
| Frame Rate | Main Stream: 2560 x 1440 at 30 fps Sub-Stream: 704 x 480 at 30 fps Third Stream: 1920 x 1080 at 30 fps |
| Codecs | H.265, H.264, MJPEG |
| Bit Rate | 32 to 16,384 kb/s |
| Audio | |
| Codecs | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Environment Noise Filtering | Yes |
| Smart Functions | |
| Face Capture | Detect up to Five Faces Simultaneously |
| Basic Event | Motion Detection, Alarm Input, Alarm Output, Video Tampering Alarm, Exception |
| Smart Event | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection |
| Smart Tracking | Manual, Panorama |
| Smart Record | ANR, Dual VCA |
| Alarm Linkage | Preset, Patrol Scan, Pattern Scan, Memory Card Video Recording, Alarm Output, Send Email, Notify Surveillance Center, upload to FTP, Smart Tracking, Audible Warning, Flash White Light |
| Alerts | Audible Warning, White Light |
| Network | |
| Security | Authenticated Username and Password, MAC Address Binding, HTTPS Encryption, 802.1x Authenticated Access, IP Address Filter |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | ONVIF Profiles G & S, ISAPI, Hikvision SDK, Third-Party Management Platform, ISUP |
| Client | iVMS-4200, Hik-Connect |
| Supported Browsers | Internet Explorer 10 or Later, Chrome 57 or Later, Firefox 52 or Later, Safari 12 or Later |
| Interface | |
| Ethernet | Self-Adaptive 100M RJ45 |
| Storage | Supports microSD/SDHC/SDXC Cards up to 256 GB |
| Alarm Inputs | 2 |
| Alarm Output | 1 |
| Audio Input | 1 |
| Audio Output | 1 |
| General | |
| Power | 24 VAC, Hi-PoE |
| Power Consumption and Current Draw | Maximum 42 W, including Maximum 2.6 W for Heater and Maximum 11 W for Supplement Light |
| IP Rating | IP66 |
| IK Rating | IK10 (Excluding Glass Window) |
| Protection | 6000 V Lightning Protection, Surge Protection, and Voltage Transient Protection |
| Operating Conditions | -22 to 149°F / -30 to 65°C <90% Relative Humidity |
| Demist | Demist by Heating Glass |
| Material of Construction | Aluminum Alloy (ADC12) |
| Dimensions | 8.66 x 15.04" / 220 x 382.1 mm |
| Weight | 13.23 lb / 6 kg |
