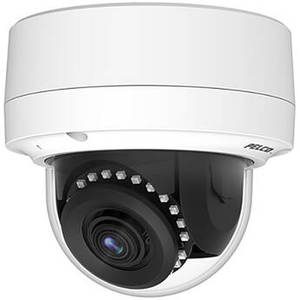

IMP231-1IRS 2MP Network Dome Camera with Night Vision
Product Description
Monitor an indoor area with the IMP231-1IRS 2MP Network Dome Camera from Pelco. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. IR LEDs provide up to 164' of night vision. The camera's 2.8-12mm motorized varifocal lens delivers a 103 to 35° horizontal field of view. Two-way audio is possible thanks to a microphone, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 2TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, Q, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an enclosure that is IP64 rated for water protection and IK10 rated for protection from vandalism.
This camera complies with ONVIF profiles G, Q, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an enclosure that is IP64 rated for water protection and IK10 rated for protection from vandalism.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.4 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 103 to 35° Vertical: 54 to 20° Diagonal: 123 to 40° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.00416 Lux B&W: 0 Lux |
| Shutter Speed | 1/10000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, NTCIP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | Third-Party VMS via Pelco API, ONVIF Profiles G, Q, S & T |
| Analytics | Simple Motion Detection, Camera Sabotage |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of October, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [2 TB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 10.2 W AC: 15.6 W PoE: 12 W |
| Environmental | |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Startup Temperature | |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 5 to 90% |
| IP Rating | IP64 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 164' / 50 m |
| Video Management Software | VideoXpert, VXToolbox, Endura 2.0 (or Later), Digital Sentry 7.3 (or Later) |
| Supported Languages | Arabic English French German Italian Korean Portuguese Russian Simplified Chinese Spanish Turkish |
| Certifications | |
| Material of Construction | Aluminum, Polymer |
| Dimensions | �: 5.3 x H: 4.9" / �: 13.5 x H: 12.4 cm |
| Weight |
