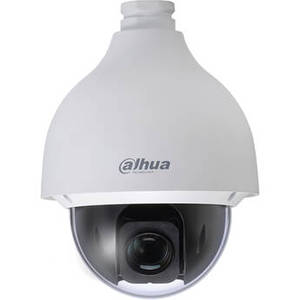

50432XANR 4MP Outdoor PTZ Network Dome Camera with Heater
Product Description
Monitor an outdoor area with the 50432XANR 4MP PTZ Network Dome Camera from Dahua Technology. This unit uses a 1/2.8" progressive scan STARVIS CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. A 4.9-156mm varifocal lens delivers a 61.6 to 2.1° horizontal field of view. This camera features endless panning, a 0 to 90° tilt range, and 32x optical zoom. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.
| Camera | |
| Sensor | 4 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 4.9 to 156mm |
| Maximum Aperture | f/1.35 to 4.4 |
| Zoom | Optical: 32x Digital: 16x |
| Lens Field of View | Horizontal: 61.6 to 2.1° Vertical: 35.1 to 1.3° Diagonal: 68.2 to 2.5° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0.0005 Lux |
| Shutter Speed | 1/30,000 to 1 Seconds |
| Camera Angle Adjustment | |
| Video | |
| Streaming Resolution | 2560 x 1440 at 30 fps (20.48 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.723, G.726, G.729, MP2L2 |
| Built-In Mic | |
| Up-the-Coax Communication | |
| Presets | 300 |
| Supported Control Protocols | Pelco-D Pelco-P RS-485 Proprietary |
| Pan/Tilt | Programmed Pan: 360° at 500°/s Manual Pan: 360° at 350°/s Programmed Tilt: 90° (0 to 90°) at 500°/s Manual Tilt: 90° (0 to 90°) at 250°/s |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, User Access Log |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, syslog |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, PSIA, CGI |
| Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Scene Change, Abandoned/Missing Object, Auto Tracking, Perimeter Protection (Tripwire, Intrusion), Smart Motion Detection+, Face Detection |
| Built-In Installation Aids | |
| OS Compatibility | iOS Android *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Memory | 1 GB RAM / 4000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | 16 W (With Heater) |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) |
| Video Management Software | DSS, DMSS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 7.3 x H: 10.0" / �: 186.0 x H: 253.0 mm |
| Weight | 5.5 lb / 2.5 kg |
