Shockwafe Elite 1000W 7.2.4-Channel Soundbar System
Product Description

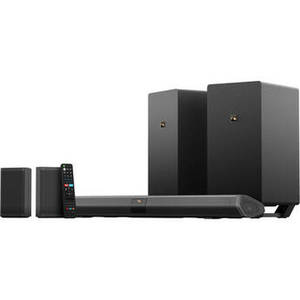

Immense bass performance adds to immersive 360° surround sound with the Shockwafe Elite 1000W 7.2.4-Channel Soundbar System from Nakamichi. The system includes a soundbar, two rear speakers, and dual 8" wireless subwoofers, yet manages room-filling sound. This is thanks to its use of multiple twin-cone drivers and Dolby Atmos and DTS:X decoding. Setup is made to be easy with sources linking to the soundbar with eARC support, and the rear speakers receiving audio and power from the dual subwoofers. Add in Bluetooth 5.0 streaming and you have a powerful and complete audio solution for your home.
| Soundbar | |
| Channel Configuration | 7.2.4-Channel |
| Enclosure Type | |
| Passive Radiators | |
| Low-Frequency Drivers | |
| Midrange Drivers | |
| High-Frequency Drivers | 2 x 1" / 2.5 cm Side-Firing Silk Dome |
| Full-Range Drivers | 6 x 2.75" / 6.99 cm Front-Firing Cone |
| Amplification | |
| Amplifier Output | 400 W |
| Crossover | |
| Frequency Response | 25 Hz to 20 kHz (Soundbar) |
| Impedance | |
| Maximum SPL | 110 dB SPL |
| SNR (Signal-to-Noise Ratio) | |
| Total Harmonic Distortion (THD) | |
| Sensitivity | |
| Satellite Speakers | |
| Speaker Positioning | Rear |
| Speaker Configuration | 2-Way |
| High-Frequency Drivers | 1 x 1" / 2.5 cm Silk Dome per Speaker |
| Full-Range Drivers | 1 x 3" / 7.6 cm Cone per Speaker |
| Power Rating | 75 W per Speaker |
| Placement & Mounting Options | Rear: Tabletop/Bookshelf, Wall-Mount (with Included Hardware) |
| Subwoofer | |
| Enclosure Type | |
| Drivers | 1 x 8" / 20.3 cm per Subwoofer (Down-Firing) |
| Passive Radiators | |
| Amplifier Output | 225 W per Subwoofer |
| Amplifier Class | |
| Frequency Response | |
| Impedance | |
| Maximum SPL | |
| Total Harmonic Distortion (THD) | |
| Subwoofer Connectivity | Wireless - Audio |
| Connectivity | |
| Inputs | 3 x HDMI - Audio/Video 1 x Optical TOSLINK - Audio 1 x Digital Coaxial - Audio 1 x 1/8" / 3.5 mm - Audio |
| Outputs | 1 x HDMI - eARC/Audio/Video |
| USB I/O | 1 x USB-A (Unspecified Interface) (Service) |
| Ethernet | None |
| Control | |
| Wireless Audio Protocols | Proprietary |
| Bluetooth | 5.0 |
| NFC | No |
| Bluetooth Profiles | |
| Bluetooth Codec Support | SBC aptX HD |
| Bluetooth Frequency Response | |
| Bluetooth Range | |
| Wi-Fi | |
| Compatibility | |
| Audio Decoding | DTS Digital Surround, DTS Neural:X, DTS-HD High-Resolution, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Sampling Frequencies | |
| HDMI Compliance | CEC, eARC |
| HDR Compatibility | HDR10, Dolby Vision |
| HDCP Compliance | HDCP 2.3 |
| Supported File Formats | |
| Supported File Systems | |
| Supported Languages | |
| Power | |
| Power Consumption | |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Environmental | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Physical | |
| IP Rating | |
| Material of Construction | |
| Wall Mountable | Yes, with Included Hardware |
| Soundbase Load Capacity | |
| Recommended Screen Size | |
| Dimensions | 45.5 x 3 x 3.6" / 115.6 x 7.6 x 9.1 cm (Soundbar) 9.5 x 11.8 x 20.3" / 24.1 x 30 x 51.6 cm (Subwoofer) 4.8 x 5.6 x 8.1" / 12.2 x 14.2 x 20.6 cm (Satellites) |
| Weight | 6 lb / 2.7 kg (Soundbar) 19.6 lb / 8.9 kg (Subwoofer) 2.9 lb / 1.3 kg (Each Satellite) |
