Cinema 700 800W 3.1-Channel Soundbar System


From Klipsch | Model #: KLCINEMA700



See more in Electronics

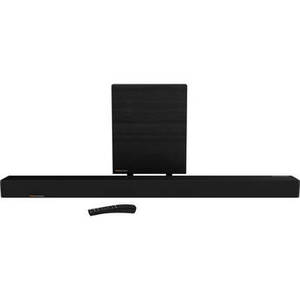

Cinema 700 800W 3.1-Channel Soundbar System

Product Description

Enhance the audio of your display with the Klipsch Cinema 700 800W 3.1-Channel Soundbar System. It features three 1" tweeters mated to Tractrix horns and four 3" composite fiber oval woofers, with a 10" wireless subwoofer for augmented bass response. The soundbar has optical and two HDMI inputs for direct connection to your source devices, an eARC-compatible HDMI output to connect to your display, Bluetooth connectivity for wireless streaming from your compatible device, and a 1/8" analog input for devices without Bluetooth. The HDMI ports support HDR and 8K UHD pass-through for integration with high-resolution A/V systems.

A subwoofer output on the soundbar lets you use a second subwoofer, or replace the included subwoofer with one of your own. At just 2.9" tall, you can place the Cinema 700 under your display on a table top, or mount it to the wall with the included hardware. The full-length grille gives it a seamless look in most any modern decor, and the included HDMI cable provides instant connectivity out of the box.
Soundbar
Channel Configuration 3.1-Channel
Enclosure Type
Passive Radiators
Low-Frequency Drivers 4 x 3" / 76.2 mm Composite Cone
Midrange Drivers
High-Frequency Drivers 3 x 1" / 25.4 mm Tweeter
Full-Range Drivers
Amplification
Amplifier Output 800 W
Crossover
Frequency Response 28 Hz to 20 kHz (System)
Impedance
Maximum SPL 107 dB
SNR (Signal-to-Noise Ratio)
Total Harmonic Distortion (THD)
Sensitivity
Satellite Speakers
Speaker Positioning
Speaker Configuration
Enclosure Type
Low-Frequency Drivers
Midrange Drivers
High-Frequency Drivers
Full-Range Drivers
Power Rating
Frequency Response
Satellite Connectivity
Maximum SPL
Total Harmonic Distortion (THD)
Sensitivity
Placement & Mounting Options
Subwoofer
Enclosure Type Bass-Reflex
Drivers 1 x 10" / 25.4 cm
Passive Radiators
Amplifier Output
Amplifier Class
Frequency Response
Impedance
Maximum SPL
Total Harmonic Distortion (THD)
Subwoofer Connectivity Wireless
Connectivity
Inputs 2 x HDMI - Audio/Video
1 x Optical TOSLINK - Audio
1 x 1/8" / 3.5 mm - Audio
Outputs 1 x HDMI - eARC/Video
1 x RCA - Subwoofer
USB Ports None
Ethernet LAN
Control
Wireless Audio Protocols Bluetooth
Bluetooth 5.0
NFC No
Bluetooth Profiles
Bluetooth Codec Support
Bluetooth Frequency Response
Bluetooth Range
Wi-Fi Yes
Compatibility
Audio Decoding Dolby Atmos, Dolby Digital, Dolby Digital Plus
Sampling Frequencies
HDMI Compliance ARC, eARC
HDR Compatibility HDR10
HDCP Compliance HDCP 2.3
Supported File Formats
Supported File Systems
Supported Languages
Power
Power Consumption
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power
Environmental
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Physical
IP Rating
Material of Construction Wood
Wall Mountable Yes
Soundbase Load Capacity
Recommended Screen Size
Dimensions 48 x 2.9 x 3.4" / 121.9 x 7.3 x 8.6 cm (Soundbar)
14.5 x 18.5 x 14.5" / 36.8 x 47.1 x 36.8 cm (Subwoofer)
Weight 22 lb / 10 kg
