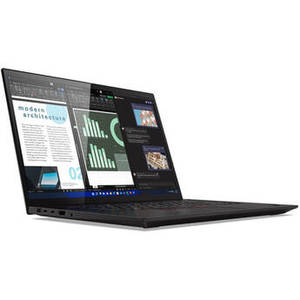

16" ThinkPad X1 Extreme Gen 5 Laptop with 3 Years Lenovo Premier Support
Product Description
Accelerate demanding workflows such as video editing and 3D modeling with the 16" ThinkPad X1 Extreme Gen 5 Laptop. Designed with creative professionals in mind, this laptop features a 16" 3840 x 2400 resolution display with a 16:10 aspect ratio that provides you with more vertical viewing space than traditional 16:9 screens. The Dolby Vision compatible display also delivers accurate colors covering 100% of the Adobe RGB gamut with high-dynamic range providing sharp contrast. Additionally, the dedicated NVIDIA GeForce RTX 3060 provides advanced features such as real-time ray tracing in addition to artificial intelligence, which can enhance the performance of select creative applications, including Adobe Premiere Pro and Photoshop.
Powered by a 12th generation Intel Core i7 14-core processor with 16GB of memory and a lightning fast 512GB NVMe PCIe 4.0 SSD, the ThinkPad X1 Extreme Gen 5 delivers the performance to quickly load and multitask demanding applications and project files. Transfer 4K videos, RAW photos, and other large files at up to 40 Gb/s through the dual Thunderbolt 4 ports. Or use convenient SD card reader to copy footage over. Wi-Fi 6E (802.3ax) support allows you to connect to compatible high-speed networks using the less congested 6 GHz band. This system includes 3 years of Lenovo Premier Support for added peace of mind. Windows 10 Pro is preinstalled via Windows 11 Pro downgrade rights.
| Operating System | Windows 10 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i7-12700H (12th Gen) |
| CPU Socket | |
| CPU | 2.3 to 4.7 GHz Performance 6-Core 1.7 to 3.5 GHz Efficiency 8-Core |
| L3 Cache | 24 MB |
| Graphics Type | Dedicated |
| GPU | NVIDIA GeForce RTX 3060 with 6 GB GDDR6 VRAM |
| Memory Type | 4800 MHz DDR5 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 2 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 262-Pin SO-DIMM |
| Memory Slots | 2 (0 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| vPro Support | No |
| Display | |
| Panel Type | IPS-Type LCD |
| Size | 16" |
| Aspect Ratio | 16:10 |
| Resolution | 3840 x 2400 |
| Touchscreen | No |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 600 cd/m2 (HDR Mode) |
| Color Gamut | 100% Adobe RGB |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | None |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 PCIe 4.0 x4 (In Use) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 2.1 |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | Yes |
| Built-In Microphones | 2 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC/Memory Stick Duo Hybrid |
| Communications | |
| Ethernet | None |
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 1080p |
| Battery | |
| Capacity | 90 Wh |
| Keyboard & Mouse | |
| Keyboard | Notebook Keyboard with Backlight |
| Pointing Device | TouchPad |
| General | |
| Security | Dedicated Hardware TPM Security Chip, Facial Recognition, Fingerprint Reader, HDD User Password Protection, Kensington Lock Slot, Webcam Blocker |
| Power Supply | 230 W with Barrel/Proprietary |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Certifications | |
| Mounting-Hole Pattern | |
| Dimensions | 14.2 x 10 x 0.7" / 359.5 x 253.8 x 17.9 mm |
| Weight | 4.14 lb / 1.88 kg |
