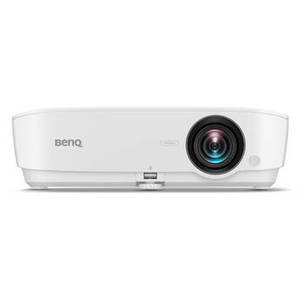

Specifically designed for the office, the MW536 4000-Lumen WXGA DLP Projector from BenQ delivers 4000 lumens of brightness to support fully lit rooms, and utilizes a low-dispersion glass lens for optimized image quality with minimal chromatic aberrations. Using the built-in display modes, the MW536 provides additional clarity based on the content you display. With various inputs from composite to dual HDMI, content can come from a wide range of sources. Additional integrated features help extend lamp life, automate setup, and more, making the MW536 an ideal display option for busy conference rooms.
| Image Display | |
| Display System | DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 4000 Lumens (ANSI) |
| Offset | 106% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 20,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 102 kHz Vertical: 23 to 120 kHz |
| Lens | |
| Lens | f/2.42 - 2.62 (f = 22 - 25.79 mm) |
| Optical Zoom | 1.2x |
| Throw Ratio | 1.55 to 1.86:1 |
| Features | |
| Keystone Correction | Auto-Vertical: ± 40° |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 2W |
| Remote | Yes |
| Input/Output Connectors | |
| Inputs/Outputs | 2 x HDMI (HDMI 1.4a) Audio, Video Input 2 x DE-15/DB-15 Video Input 1 x DE-15/DB-15 Video Output 1 x 4-Pin DIN (S-Video) Video Input 1 x RCA (Composite) Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB-A Power Output 1 x Mini-USB Service Input 1 x DE-9/DB-9 (RS-232) Control Input |
| HDCP Support | Version 1.2 |
| General | |
| Light Source | Lamp |
| Expected Lamp Life | Full Brightness: 5500 Hours Medium Brightness: 10,000 Hours Low Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 32 dB Low Brightness: 29 dB |
| Security | Cable Lock Slot |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 252 W Standby Mode (Lamp Off): < 0.5 W |
| Certifications | |
| Operating Altitude | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Dimensions (W x H x D) | 13.0 x 4.0 x 9.5" / 330.6 x 100.4 x 241.0 mm |
| Weight | 5.7 lb / 2.6 kg |
