Product Description

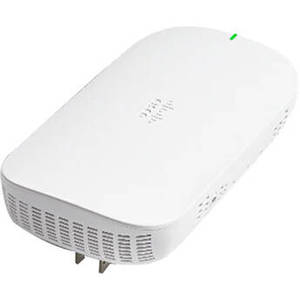

Easily eliminate dead zones in a small business's wireless network by plugging the compact Cisco Business 151AXM Wireless Mesh Extender into an available outlet to expand coverage. Designed to work with Cisco Business wireless access points, this Wi-Fi 6 (802.11ax) extender module supports up to 1.488 Gb/s data transfer rates over the 5 GHz and 2.4 GHz bands while using a single network ID (SSID) for seamless roaming from room to room. Up to 25 mesh extenders may be associated to a single access point. Your wireless connections are secured with WPA2, WPA2-Enterprise, and WPA3 encryption. You can quickly manage the 151AXM mesh extender and your network devices, including access permissions and setting up guest logins, using the Cisco Business mobile app for iOS and Android.
Number of Units | |
Connectivity | |
Wi-Fi | Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
Ports | None |
Number of Antennas | |
MU-MIMO Support | 2 x 2 |
Beamforming Support | Yes |
Wireless Security | WPA2, WPA2-Enterprise, WPA3 |
Bluetooth | 5.0 |
Communication Protocol | None |
Virtual Assistant | None |
General | |
Throughput | 1488 Mb/s Total 5 GHz: 1200 Mb/s 2.4 GHz: 288 Mb/s |
Transmit Power | 20 dBm |
Antenna Gain | 4 to 5 dBi |
Guest Network Support | Yes |
Max SSIDs Supported | |
Mobile Operating System Support | Android iOS |
Operation Modes | Mesh |
Supported IEEE Standards | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11i, 802.11n, 802.11r, 802.1x |
Supported Protocols | RADIUS |
Hardware | |
Processor | |
CPU | 1 GHz Quad-Core |
Memory | 1 GB |
Flash Memory | 256 MB |
Speakers | None |
Built-In Microphones | None |
Display | |
Electrical | |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | |
Power Consumption | 8.3 W |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 10 to 90% |
Storage Temperature | -22 to 158°F / -30 to 70°C |
Storage Humidity | 10 to 90% |
Physical | |
Certifications | |
IP Rating | None |
Material of Construction | |
Dimensions | 6.7 x 2.1 x 3.6" / 170.2 x 53.4 x 91.5 mm |
Weight | 10.1 oz / 285 g |
