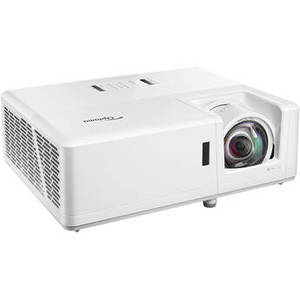

ZH406STx 4200-Lumen Full HD Short-Throw Laser DLP Projector
Product Description
Enjoy bright images and high dynamic contrast at short distances with the Optoma ZH406STx 4200-Lumen Full HD Short-Throw Laser DLP Projector. Its native 1920 x 1080 Full HD resolution displays data and images clearly at short viewing distances, while its 300,000:1 dynamic contrast ratio helps enhance detail in dark images. Its 0.5:1 throw ratio allows you to place the projector just 11' from the screen for 300" images without losing focus. The ZH406STx features two HDMI inputs, a USB Type-A power output, and a 3.5mm output for optional headphones or external speaker. Without a speaker, you can still enjoy stereo audio out of the projector's built-in 10W speakers.
| Image Display | |
| Display System | DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | Maximum: DCI 4K - 4096 x 2160 Minimum: VGA |
| Maximum Brightness | 4200 Lumens |
| Uniformity | 80% |
| Offset | 115% |
| Aspect Ratio | Native: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio | 300,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Packing (up to 1080p) Side by Side (up to 1080i) Top Bottom (up to 1080p) |
| Scan | Vertical: 50 to 120 Hz Horizontal: 15.375 to 91.146 kHz |
| Lens | |
| Lens | f = 7.51 mm |
| Throw Distance | 15.75 - 129.92" / 0.4 - 3.3 m |
| Throw Ratio | 0.5:1 |
| Projection Size | 36.4 - 300.5" / .9 - 7.6 m |
| Features | |
| Keystone Correction | Horizontal: ± 15° Vertical: ± 15° |
| Supported HDR Input Formats | HDR10 |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Built-In Speaker | Yes (Stereo) |
| Speaker Power | 20W |
| Remote | Yes |
| Input/Output Connectors | |
| Inputs/Outputs | 1 x HDMI (HDMI 2.0) Audio, Video Input 1 x HDMI (HDMI 1.4a) Audio, Video Input 1 x DE-15/DB-15 (VGA) Video Output 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB-A Power Output 1 x RJ45 (Ethernet) Control 1 x DE-9/DB-9 (RS-232) Control 1 x 12 V Trigger Control 1 x 3-Pin DIN (VESA 3D Sync) Service |
| Hardware | |
| Wireless LAN / Wi-Fi | None |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 30,000 Hours |
| Fan Noise | Medium Brightness: 30 dB Full Brightness: 32 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Supported Languages | Arabic Czech Danish Dutch English Farsi Finnish French German Greek Hungarian Indonesian Italian Japanese Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish Vietnamese |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 269 W Low Brightness: 206 W Standby Mode (Lamp Off): 0.5 W |
| Certifications | |
| Operating Altitude | 9843' / 299 m |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | |
| Operating Humidity | 0 to 85% |
| Storage Humidity | |
| Dimensions (W x H x D) | 13.3 x 4.8 x 10.4" / 337.0 x 122.5 x 265.0 mm |
| Weight | 9.9 lb / 4.5 kg |
