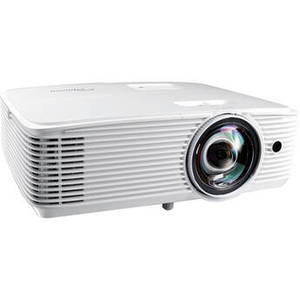

EH412STx 4000-Lumen Full HD Short-Throw DLP Projector
Product Description
Enjoy bright images and high dynamic contrast at short throw distances with the Optoma EH412STx 4000-Lumen Full HD Short-Throw DLP Projector. Its native 1920 x 1080 resolution displays data and images clearly at various viewing distances, while its 22,000:1 dynamic contrast ratio helps enhance detail in dark images. Its 0.49:1 throw ratio allows you to place the projector near the front of the room, making it well suited for large-screen presentations in small rooms.
The EH412STx features two HDMI inputs, one of which is MHL-compatible for sharing media from your compatible smart device. A USB port provides up to 1.5A of power for compatible HDMI streaming adapters. An IR remote control is included as an added convenience.
The EH412STx features two HDMI inputs, one of which is MHL-compatible for sharing media from your compatible smart device. A USB port provides up to 1.5A of power for compatible HDMI streaming adapters. An IR remote control is included as an added convenience.
| Image Display | |
| Display System | DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | Maximum: 4K UHD - 3840 x 2160 Minimum: VGA |
| Maximum Brightness | 4000 Lumens |
| Uniformity | 70% |
| Offset | 116% |
| Aspect Ratio | Native: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio | 22,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Packing (up to 1080p) Side by Side (up to 1080i) Top Bottom (up to 1080p) |
| Scan | Horizontal: 15.38 to 91.15 kHz Vertical: 50 to 85 Hz or 120 Hz |
| Lens | |
| Lens | f = 7.42 mm |
| Throw Distance | 15.75 - 133.86" / 0.4 - 3.4 m |
| Throw Ratio | 0.49:1 |
| Projection Size | 36.2 - 307.8" / .9 - 7.8 m |
| Features | |
| Keystone Correction | Vertical: ± 40° |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Built-In Speaker | Yes |
| Speaker Power | 10W |
| Remote | Yes |
| Input/Output Connectors | |
| Inputs/Outputs | 1 x HDMI (HDMI 2.0) Audio, Video Input 1 x HDMI (HDMI 1.4a) Audio, Video Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB-A Power Output 1 x DE-9/DB-9 (RS-232) Control |
| Hardware | |
| Wireless LAN / Wi-Fi | None |
| General | |
| Light Source | Lamp |
| Lamp Power | 240 W |
| Expected Lamp Life | Full Brightness: 4000 Hours Medium Brightness: 12,000 Hours Low Brightness: 15,000 Hours |
| Fan Noise | Full Brightness: 26 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 285 W Low Brightness: 200 W Standby Mode (Lamp Off): 0.5 W |
| Certifications | |
| Operating Altitude | 9843' / 3000 m |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | |
| Operating Humidity | 0 to 85% |
| Storage Humidity | |
| Dimensions (W x H x D) | 12.4 x 4.3 x 9.6" / 31.5 x 10.9 x 24.4 cm |
| Weight | 7.43 lb / 3.37 kg |
