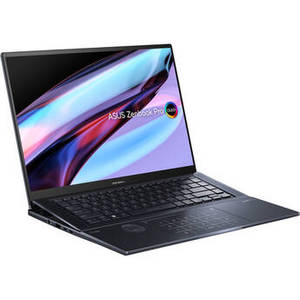

16" Zenbook Pro 16X OLED Multi-Touch Laptop


From ASUS | Model #: ASUX7602DB74



See more in Electronics


16" Zenbook Pro 16X OLED Multi-Touch Laptop

Product Description

Stay productive and let your creativity shine with the 16" Zenbook Pro 16X OLED Multi-Touch Laptop from ASUS. This compact and lightweight notebook features a powerful 12th generation 3.5 GHz Intel Core i7 14-core processor paired with 16GB of RAM and a fast 1TB solid-state drive that can quickly load and multitask a variety of applications. The dedicated NVIDIA GeForce RTX 3060 graphics accelerates creative applications and powers through your video or photo editing workflow. Additionally, the graphics complement the 3840 x 2400 OLED NanoEdge touchscreen display which has a 16:10 aspect ratio and is designed to provide high color accuracy and high dynamic range for photos and videos that feature bright highlights and deep shadows.

The Zenbook's backlit keyboard features ASUS's Active Aerodynamic System Ultra (AAS Ultra) technology which automatically raises and tilts the keyboard to ensure a comfortable typing angle, while also ensuring key components receive better cooling and airflow. The keyboard also features an integrated ASUS Dial which allows for fingertip control of creative applications. Dual Thunderbolt 4 ports allow you to daisy chain high-speed storage devices and displays, transferring data at up to 40 Gb/s, while the USB 3.2 Gen 2 Type-A ports transfer up to 10 Gb/s. Work on the go and connect to a wireless network thanks to the built-in Wi-Fi 6 (802.11ax), or use the included USB Type-A to RJ45 Gigabit Ethernet adapter to connect to a wired network. Windows 11 Pro is pre-installed on the laptop.

Operating System Windows 11 Home (64-Bit)
Performance
CPU Architecture x86
Chipset
Processor Intel Core i7-12700H (12th Gen)
CPU Socket
CPU 4.7 GHz Performance 6-Core
3.5 GHz Efficiency 8-Core
L3 Cache 24 MB
Graphics Type Hybrid
GPU Intel Iris Xe
NVIDIA GeForce RTX 3060 (95 W TGP) with 6 GB GDDR6 VRAM
Memory Type LPDDR5
Total Installed Memory 16 GB
Memory Configuration 1 x 16 GB (Onboard)
Maximum Memory Capacity 32 GB
Memory Slot Type
Memory Slots
Buffered Memory No
ECC Memory No
Intel Optane Memory
Afterburner
Display
Panel Type OLED
Size 16"
Aspect Ratio 16:10
Resolution 3840 x 2400
Touchscreen Yes
Finish Glossy
Maximum Brightness 550 cd/m2
Color Gamut 100% DCI-P3
Refresh Rate
Contrast Ratio 1,000,000:1
Response Time 0.2 ms
Variable Refresh Technology None
Viewing Angle (H x V)
Storage and Expansion
Total Drive Bays
2.5" Slots
SSD Slots 1 x M.2 2280 PCIe 4.0 x4 (In Use)
Total Installed Capacity 1 TB
Solid State Storage 1 x 1 TB M.2 NVMe PCIe
Hard Disk Storage
Hybrid Storage
MPX Bays
PCI Expansion
PCI Expansion in MPX Bays
Expansion Slots
Optical Drive None
I/O
Ports 1 x USB Type-A (USB 3.1 / USB 3.2 Gen 2)
USB Type-C 2 x Thunderbolt 4 (Supports Power Delivery)
Display 1 x HDMI 2.1
Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
Built-In Speakers 2
Built-In Microphones 2
Media/Memory Card Slot Single Slot: SD/SDHC (SD Express)
Communications
Ethernet None
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
MU-MIMO Support 2 x 2
Bluetooth 5.2
GPS None
NFC No
Webcam User-Facing: 2 MP (1080p)
Battery
Battery Chemistry Lithium-Ion
Capacity 6-Cell: 96 Wh
Keyboard & Mouse
Keyboard Chiclet Notebook Keyboard with Backlight
Pointing Device Touchscreen
General
Security BIOS Booting, Dedicated TPM Security Chip, Fingerprint Reader
Power Supply 240 W with Barrel/Proprietary
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature
Operating Humidity
Mounting-Hole Pattern
Dimensions 13.98 x 9.88 x 0.7" / 35.5 x 25.1 x 1.78 cm
Weight 5.29 lb / 2.4 kg
