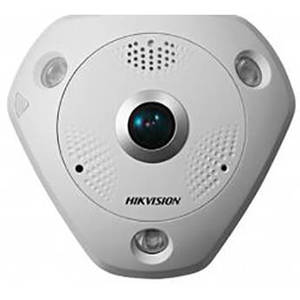

DS-2CD63C5G0-IS 12MP Network Fisheye Camera with Night Vision & Heater

Product Description
Monitor a room or hallway with the DS-2CD63C5G0-IS 12MP Network Fisheye Camera from Hikvision. This unit uses a 1/1.7" progressive scan CMOS sensor to capture 4000 x 3000 resolution video at 20 fps. Three independently controlled IR LEDs provide up to 50' of night vision. The camera's 1.29mm fixed lens delivers a 360° panoramic field of view (180° horizontally and vertically). Eighteen fisheye and panoramic display modes are supported. Two-way audio communication is possible thanks to two built-in microphones, a built-in speaker, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable. This fisheye camera complies with ONVIF profiles G & S, making it compatible with a wide range of surveillance devices. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.
| Camera | |
| Sensor | 12 MP 1/1.7" CMOS |
| Lens Mount | M12 |
| Focal Length | 1.3mm |
| Maximum Aperture | f/2.2 |
| Zoom | |
| Lens Field of View | Horizontal: 180° Vertical: 180° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.05 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 4000 x 3000 at 20 fps (16 Mb/s ) 3000 x 3000 at 30 fps |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | |
| Supported Protocols | |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G & S, ISAPI |
| Analytics | Line Crossing, Intrusion, Region Entrance, Region Exiting, Unattended Baggage, Objection Removal, Audio Exception Detection, Intersection Analysis, Heat Mapping |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | AC: 12.5 W (With Heater) PoE: 15 W (With Heater) |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 3 x 850 nm IR LEDs up to 50' / 15.2 m |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 6.6 x H: 1.8L: 6.0" / �: 167.4 x H: 46.8L: 152.8 mm |
| Weight | 3.1 lb / 1.4 kg |
