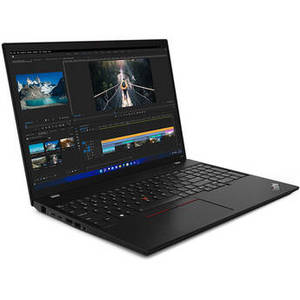

16" ThinkPad P16s Gen 1 Notebook (Black)
Product Description
A 12th Gen Intel Core i7 processor rests at the heart of the ThinkPad, delivering Performance and Efficiency core power up to 4.7 and 3.4 GHz, respectively, streamlining your workload for greater productivity. With 32GB of 3200 MHz DDR4 RAM and 1TB M.2 PCIe NVMe storage, you can enhance multitasking and rendering performance while maintaining enough space for high-quality assets. The 16" In-Plane Switching (IPS) display offers a resolution of 1920 x 1200, delivering crisp images backed by NVIDIA Quadro T550 Graphics. Connect an array of peripherals to the ThinkPad with two Thunderbolt 4 ports, boasting data transfer speeds up to 40 Gb/s and support for powered devices like storage arrays, displays, and more. Two USB 3.2 Gen 1 Type-A ports enable you to connect peripherals like portable drives, keyboards, and mice, and offers up to 5 Gb/s data transfer speed. You may also use Bluetooth 5.2 wireless technology for cable-free device usage. Manage documents and quickly download important assets with Wi-Fi 6E (802.11ax) wireless networking technology or use the Gigabit Ethernet port for secure wired connection. The ThinkPad P16s includes Windows 11 Pro operating system.
| Operating System | Windows 11 Pro |
| Model Year | Mid 2022 |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i7-1260P (12th Gen) |
| CPU Socket | |
| CPU | 2.1 to 4.7 GHz Performance Quad-Core 1.5 to 3.4 GHz Efficiency 8-Core |
| L3 Cache | 18 MB |
| Graphics Type | Dedicated |
| GPU | NVIDIA Quadro T550 with 4 GB GDDR6 VRAM |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 32 GB |
| Memory Configuration | 1 x 16 GB (Onboard) 1 x 16 GB (User-Replaceable) |
| Maximum Memory Capacity | 48 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 1 (0 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Display | |
| Panel Type | IPS-Type LCD |
| Size | 16" |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Touchscreen | No |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 300 cd/m2 |
| Color Gamut | 45% NTSC |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 PCIe 4.0 x4 (In Use) |
| Total Installed Capacity | 1 TB |
| Solid State Storage | 1 x 1 TB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 2 x Thunderbolt 4 |
| Display | 1 x HDMI |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | Yes |
| Built-In Microphones | Yes |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| SIM Card Size | 1 x Nano |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 1080p |
| Battery | |
| Capacity | 52.5 Wh |
| Keyboard & Mouse | |
| Keyboard | Notebook Keyboard |
| Pointing Device | Pointing Stick, TouchPad |
| General | |
| Security | Dedicated Hardware TPM Security Chip, Fingerprint Reader, Kensington Lock Slot, Webcam Blocker |
| Power Supply | 100 W with USB Type-C |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Certifications | EPEAT, ENERGY STAR8.0, TCO Certified9.0, RoHS *as per Manufacturer |
| Mounting-Hole Pattern | |
| Dimensions | 14.25 x 10.06 x 0.82" / 36.2 x 25.55 x 2.08 cm |
| Weight | 3.7 lb / 1.7 kg |
