Product Description

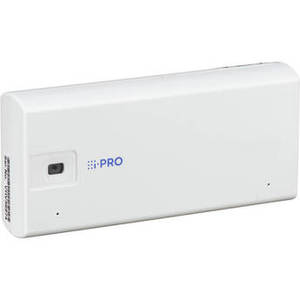

Monitor a room or hallway with the white WV-S71300-F3 1080p Network mini Box Camera from i-PRO. This unit uses a 1/2.8" CMOS image sensor to capture 1080p resolution video at 30 fps. The camera's 3.2mm fixed lens delivers an 81.1° field of view. Two built-in omnidirectional electret condenser microphones enable the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This compact camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 3.2mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 81.1° Vertical: 51.4° |
| IR Cut Filter | |
| Day/Night | |
| Minimum Illumination | Color: 0.21 Lux B&W: 0.2 Lux |
| Shutter Speed | 1/10000 to 16/30 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | AAC-LC, G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, HTTP, ICMP, IGMP, IPv4/v6, LLDP, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, M, S & T |
| Analytics | Direction Change Detection, Video Motion Detection, Scene Change Detection, Audio Detection, AI Sound Classification |
| Built-In Installation Aids | |
| OS Compatibility | Windows Android iOS *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 7.5 W PoE: 8.2 W |
| Environmental | |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| IP Rating | IP44 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x USB-A |
| Illumination | |
| Video Management Software | |
| Supported Languages | |
| Certifications | |
| Material of Construction | Aluminum, Polymer |
| Dimensions | H: 1.9 x W: 4.0 x L: 0.8" / H: 48.0 x W: 102.0 x L: 21.0 mm |
| Weight | 5.5 oz / 157 g |
