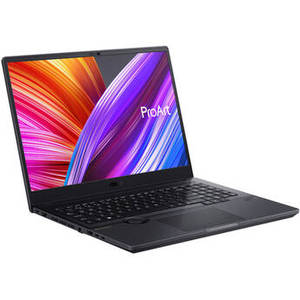

16" ProArt StudioBook OLED 16 Series Laptop
Product Description
Enhance your creative workflow and take on demanding video, photography, and 3D design projects from almost anywhere with the 16" ASUS ProArt StudioBook OLED 16 Laptop. Designed with creative professionals in mind, this high-performance laptop features a PANTONE validated 3840 x 2400 resolution OLED HDR display that's factory calibrated for ΔE <2 color accuracy, covering 100% of the DCI-P3 gamut. NVIDIA GeForce RTX 3080 Ti graphics helps to reduce render times with supported applications while delivering advanced features such as real-time ray tracing and artificial intelligence. At the same time, the 12th generation 2.3 GHz Intel Core i7 14-core processor works alongside the 32GB of DDR5 memory and dual 1TB M.2 PCIe 4.0 solid-state drives to load applications and large files in a flash. The backlit chiclet keyboard also features a convenient control dial that allows you to quickly adjust the zoom or brush sizes.
Connect high-speed storage drives, monitors, and other compatible peripherals to the dual Thunderbolt 4 ports. Two USB 3.2 Gen 2 Type-A ports are also available in addition to a dedicated SD card reader. With Wi-Fi 6 support and a Gigabit Ethernet port, you can connect to compatible networks to quickly upload your finished projects. Load your ProArt StudioBook OLED 16 laptop and other gear into the included backpack for travel and commutes. Windows 11 Home is preinstalled on the system.
| Operating System | Windows 11 Home |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i7-12700H (12th Gen) |
| CPU Socket | |
| CPU | 2.3 to 4.7 GHz Performance 6-Core 3.5 GHz Efficiency 8-Core |
| L3 Cache | 24 MB |
| Graphics Type | Dedicated |
| GPU | NVIDIA GeForce RTX 3080 Ti with 16 GB GDDR6 VRAM |
| Memory Type | 4800 MHz DDR5 |
| Total Installed Memory | 32 GB |
| Memory Configuration | 2 x 16 GB (User-Replaceable) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 262-Pin SO-DIMM |
| Memory Slots | 2 (0 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Display | |
| Panel Type | OLED |
| Size | 16" |
| Aspect Ratio | 16:10 |
| Resolution | 3840 x 2400 |
| Touchscreen | No |
| Finish | Glossy |
| Maximum Brightness | 550 cd/m2 (Peak) |
| Color Gamut | 100% DCI-P3 100% Adobe RGB 133% sRGB |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 1,000,000:1 |
| Response Time | 0.2 ms |
| Variable Refresh Technology | None |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 2 x M.2 2280 PCIe 4.0 x4 (In Use) |
| Total Installed Capacity | 2 TB |
| Solid State Storage | 2 x 1 TB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) |
| USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 2.1 |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | Yes |
| Built-In Microphones | 4 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 720p |
| Battery | |
| Battery Chemistry | Lithium-Ion |
| Capacity | 4-Cell: 90 Wh |
| Keyboard & Mouse | |
| Keyboard | Chiclet Notebook Keyboard with Backlight, Control Dial, Number Pad |
| Pointing Device | TouchPad |
| General | |
| Security | BIOS Booting, Dedicated Hardware TPM Security Chip, Facial Recognition, Fingerprint Reader, HDD User Password Protection, Accepts 3rd Party Security Lock Devices, Webcam Blocker |
| Power Supply | 240 W with Barrel/Proprietary |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 14.3 x 10.4 x 0.78" / 36.2 x 26.4 x 1.99 cm |
| Weight | 5.3 lb / 2.4 kg |
