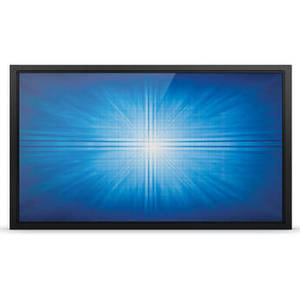

2294L 21.5" Class 1080p HD Open Frame Touchscreen Display (IntelliTouch)
Product Description
The Elo Touch 2294L 21.5" Class 1080p HD Open Frame Touchscreen Display delivers an industrial-grade solution that is cost-effective for OEMs and system integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The display offers the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
| Display | |
| Screen Size (Diagonal) | 21.5" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | 640 x 480 / 60 Hz 720 x 400 / 70 Hz 800 x 500 / 60 Hz 800 x 600 / 60 Hz 1024 x 768 / 60 Hz 1280 x 800 / 60 Hz 1280 x 1024 / 60 Hz 1366 x 768 / 60 Hz 1440 x 900 / 60 Hz 1680 x 1050 / 60 Hz 1920 x 1080 / 50 Hz 1920 x 1080 / 60 Hz |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 225 cd/m� (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 18.77 x 10.56" / 476.64 x 268.11 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | |
| Response Time | 14 ms |
| Refresh Rate | |
| Horizontal Frequency | 30 to 82 kHz |
| Vertical Frequency | 50 to 75 Hz |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Pixel Clock Frequency | |
| Connectivity | |
| Input Ports | 1 x HDMI 1.3 1 x 15-Pin VGA 1 x DisplayPort 1.1 |
| USB Ports | 1 x USB 2.0 |
| Other I/O | 2 x Serial |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Surface Capacitive |
| Processing | |
| Operating System | |
| GPU | |
| Storage | |
| RAM | |
| Supported File Systems | |
| Slot | |
| Operating System Support | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 14.5 W Standby: 1.5 W |
| DC Input Power | 12 VDC |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 95% |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | |
| Physical | |
| Wall Mounting | 100 x 100 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 20.1 x 11.7 x 1.7" / 511.8 x 298.2 x 42.0 mm (with Bracket) 20.3 x 12.2 x 1.5" / 516.0 x 311.0 x 37.9 mm (Panel) |
| Weight | 11.24 lb / 5.10 kg |
