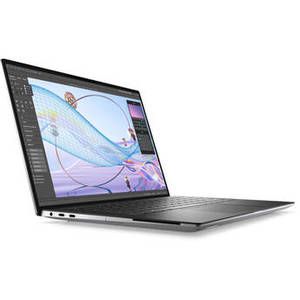

14" Mobile Precision 5470 Workstation (Silver)
Product Description
Driving performance and ensuring your system runs smooth is a 12th Gen Intel Core i7 processor equipped with six Performance and eight Efficiency cores delivering frequencies up to 4.8 and 3.7 GHz, respectively. Multitasking and application load times are enhanced with 32GB of integrated DDR5 RAM and 512GB M.2 PCIe 4.0 NVMe solid-state drive. You get clear and vivid imagery on the 14" 1920 x 1200 resolution display with 60 Hz refresh rate backed by dedicated NVIDIA RTX A1000 graphics. Four Thunderbolt 4 ports provide your system with enhanced connectivity so you can leverage multi-screen support as well as external drive arrays, 40 Gb/s transfer speeds, and daisy-chain capabilities for a cohesive setup when at home or the office. The Precision 5470 has Windows 10 Pro preinstalled with an available upgrade to Windows 11 Pro.
| Operating System | Windows 10 Pro |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i7-12800H (12th Gen) |
| CPU Socket | |
| CPU | 4.8 GHz Performance 6-Core 3.7 GHz Efficiency 8-Core |
| L3 Cache | 24 MB |
| Graphics Type | Dedicated |
| GPU | NVIDIA RTX A1000 with 4 GB GDDR6 VRAM |
| Memory Type | 5200 MHz LPDDR5 |
| Total Installed Memory | 32 GB |
| Memory Configuration | 32 GB (Onboard) |
| Maximum Memory Capacity | |
| Memory Slot Type | |
| Memory Slots | |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Display | |
| Panel Type | LCD |
| Size | 14" |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Touchscreen | No |
| Finish | |
| Maximum Brightness | 500 cd/m2 |
| Color Gamut | 100% sRGB |
| Refresh Rate | 60 Hz |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | None |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 PCIe 4.0 x4 (In Use) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | |
| USB Type-C | 4 x Thunderbolt 4 (Supports Power Delivery) |
| Display | |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | 4 x 2 W |
| Built-In Microphones | Yes |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Communications | |
| Ethernet | None |
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 1 MP (720p) |
| Battery | |
| Capacity | 4-Cell: 72 Wh |
| Keyboard & Mouse | |
| Keyboard | Notebook Keyboard with Backlight |
| Pointing Device | TouchPad |
| General | |
| Security | Wedge-Shaped Lock Slot |
| Power Supply | 130 W with USB Type-C |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Certifications | ENERGY STAR *as per Manufacturer |
| Mounting-Hole Pattern | |
| Dimensions | 12.23 x 8.28 x 0.75" / 310.6 x 210.3 x 18.95 mm |
| Weight | 3.26 lb / 1.48 kg |
