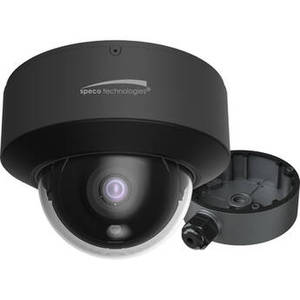

Flexible Intensifier O4FD1 4MP Outdoor Network Dome Camera with Night Vision


From Speco Technologies | Model #: SPO4FD1



See more in Cameras


Flexible Intensifier O4FD1 4MP Outdoor Network Dome Camera with Night Vision

Product Description

Monitor an indoor or outdoor area with the dark gray Flexible Intensifier O4FD1 4MP Network Dome Camera from Speco Technologies. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. A 2.8mm fixed lens delivers a wide 111.3° horizontal field of view. The camera features a built-in microphone and an audio input. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A built-in memory card slot accepts microSD cards up to 256GB (available separately).

This NDAA-certified camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera's enclosure is IP67 and IK10 rated for safe outdoor use in areas at risk of vandalism.

Camera
Sensor 4 MP 1/1.8" CMOS
Lens Mount
Focal Length 2.8mm
Maximum Aperture f/1.6
Zoom
Lens Field of View Horizontal: 111.3°
Vertical: 78.9°
Diagonal: 118.4°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.0016 Lux
B&W: 0 Lux
Shutter Speed 1/100000 to 1 Seconds
Camera Angle Adjustment Horizontal: 0 to 355°
Vertical: 0 to 67°
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 2560 x 1440 at 30 fps (8 Mb/s )
Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio One-Way
Audio Formats G.711
Built-In Mic Yes
Built-In Speaker
Audio I/O Input:
1/8" / 3.5 mm
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark
Supported Protocols DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, PPPoE, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) ONVIF Profile T
Analytics Motion Detection, Object Abandoned/Missing Detection, Region Entrance/Exiting/Intrusion Detection (People/Vehicle Classification), Line Crossing Detection (People/Vehicle Classification), Video Tampering Detection, Scene Change Detection, Face Detection & Face Capture with Speco Blue NVR
Built-In Installation Aids
OS Compatibility Android
iOS
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O 1 / 1
Hardware
Memory
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage None
External Storage Options
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W)
Power Consumption 5.5 W
Environmental
Operating Temperature -40 to 140°F / -40 to 60°C
Startup Temperature
Storage Temperature
Operating Humidity 0 to 95% (Non-Condensing)
IP Rating IP67
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination IR LEDs up to 98' / 29.87 m
Video Management Software SecureGuard VMS, SecureGuard CMS, SecureGuard Client, Speco Blue
Supported Languages
Certifications
Material of Construction
Dimensions �: 4.7 x H: 3.5" / �: 119.4 x H: 88.9 mm
Weight 1.43 lb / 0.65 kg
