Product Description

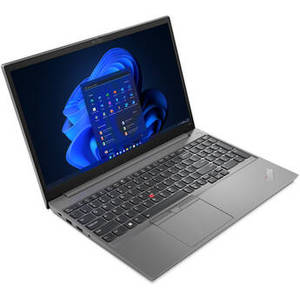

At the heart of the ThinkPad E15 Gen 4 is a 12th Gen Intel Core i7 processor, delivering enhanced system-wide operations with Performance and Efficiency core frequencies up to 4.7 and 3.5 GHz, respectively. You get 16GB of DDR4 3200 MHz RAM and a 256GB M.2 NVMe PCIe 4.0 solid-state drive, both working together to streamline multitasking capabilities and application responsiveness. You get a clear and smooth picture suitable for work and play with the 15.6" In-Plane Switching (IPS) panel, delivering up to 1920 x 1080 resolution. Connect your peripherals with Thunderbolt 4, USB 2.0, and USB 3.2 Gen 1 ports, allowing you to use a wide range of peripherals from external drives to mice and controllers. A user-facing 1080p webcam and mic array enables others to see and hear you clearly when conducting remote conference calls. Access cloud networks, download assets, and even stream your favorite content wirelessly with Wi-Fi 6E (802.11ax) technology or use a wired connection with the Gigabit Ethernet port. This system runs on Windows 11 Pro operating system, allowing you to leverage a wide range of built-in applications.
Operating System | Windows 11 Pro |
Model Year | Mid 2022 |
Performance | |
CPU Architecture | x86 |
Chipset | |
Processor | Intel Core i7-1255U (12th Gen) |
CPU Socket | |
CPU | 1.7 to 4.7 GHz Performance Dual-Core 1.2 to 3.5 GHz Efficiency 8-Core |
L3 Cache | 12 MB |
Graphics Type | Integrated |
GPU | Intel Iris Xe |
Memory Type | 3200 MHz DDR4 |
Total Installed Memory | 16 GB |
Memory Configuration | 1 x 8 GB (Onboard) 1 x 8 GB (User-Replaceable) |
Maximum Memory Capacity | 40 GB |
Memory Slot Type | 260-Pin SO-DIMM |
Memory Slots | 1 (0 Available) |
Buffered Memory | No |
ECC Memory | No |
Intel Optane Memory | |
Afterburner | |
vPro Support | |
Display | |
Panel Type | IPS-Type LCD |
Size | 15.6" |
Aspect Ratio | 16:9 |
Resolution | 1920 x 1080 |
Touchscreen | No |
Finish | Anti-Glare / Matte |
Maximum Brightness | 300 cd/m2 |
Color Gamut | 45% NTSC |
Refresh Rate | |
Contrast Ratio | |
Response Time | |
Variable Refresh Technology | |
Viewing Angle (H x V) | |
Storage and Expansion | |
Total Drive Bays | |
2.5" Slots | |
SSD Slots | |
Total Installed Capacity | 256 GB |
Solid State Storage | 1 x 256 GB M.2 NVMe PCIe |
Hard Disk Storage | |
Hybrid Storage | |
MPX Bays | |
PCI Expansion | |
PCI Expansion in MPX Bays | |
Expansion Slots | |
Optical Drive | None |
I/O | |
Ports | 1 x USB-A (USB 2.0) 1 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
USB Type-C | 1 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
Display | 1 x HDMI |
Audio | 1 x 1/8" / 3.5 mm Headphone Input/Output |
Built-In Speakers | Yes |
Built-In Microphones | Yes |
Media/Memory Card Slot | None |
Communications | |
Ethernet | 1 x RJ45 (Gigabit) |
Wi-Fi | Wi-Fi 6E (802.11ax) |
MU-MIMO Support | 2 x 2 |
Bluetooth | 5.2 |
GPS | None |
NFC | No |
Webcam | User-Facing: 1080p |
Battery | |
Capacity | 57 Wh |
Keyboard & Mouse | |
Keyboard | Notebook Keyboard with Backlight |
Pointing Device | TouchPad |
General | |
Security | Dedicated Hardware TPM Security Chip, Nano Security Lock Slot |
Power Supply | 65 W with USB-C |
AC Input Power | |
Operating Temperature | |
Operating Humidity | |
Certifications | |
Mounting-Hole Pattern | |
Dimensions | 14.37 x 9.45 x 0.74" / 36.5 x 24 x 1.88 cm |
Weight | 3.75 lb / 1.7 kg |
