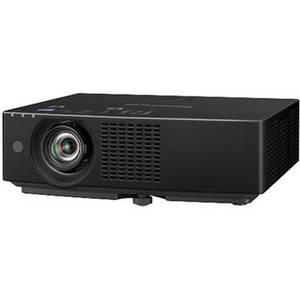

PT-VMZ51 5200-Lumen WUXGA Laser 3LCD Projector
Product Description
From the classroom to the conference room, you can create large, vivid images with the Panasonic PT-VMZ51 5200-Lumen WUXGA Laser 3LCD Projector. Showcase your work on a wall or screen in 1920 x 1200 resolution in fully lit rooms, thanks to the laser light source emitting up to 5200 lumens of brightness. With a short throw of 1.09 to 1.77:1, you can project an image of up to 60" from just 4.6' away. With optical zoom and Digital Zoom Extender, the throw can go up to 2.21:1 for displays as large as 300".
| Image Display | |
| Display System | 3-Chip 0.64" LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Minimum: 720 x 480 Maximum: 4096 x 2160 |
| Maximum Brightness | 5200 Lumens |
| Uniformity | 85% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| Scan | Horizontal: 15.6 to 91.1 kHz Vertical: 24 to 100 Hz |
| Lens | |
| Focus | Manual |
| Lens | f/1.6 - 2.12 (f = 15.30 - 24.64 mm) |
| Lens Shift | Vertical: + 44% Horizontal: ± 20% |
| Optical Zoom | Manual: 1.6x |
| Throw Ratio | 1.09 to 1.77:1 (30" Screen Size @ 2.23' / .68 m) |
| Projection Size | 30 - 300" / .8 - 7.6 m |
| Features | |
| Keystone Correction | Vertical: ± 25° Horizontal: ± 35° |
| Supported HDR Input Formats | None |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |
| Remote | Yes |
| Input/Output Connectors | |
| Inputs/Outputs | 2 x HDMI (HDMI) Audio, Video Input 2 x DE-15/DB-15 (VGA) Video Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x DE-9/DB-9 Control Input 1 x RJ45 (HDBaseT) Audio, Control, Data, Power, Video Input 1 x RJ45 (Ethernet) Control Input 1 x USB-A Data, Power Input/Output |
| HDCP Support | Version 1.4 |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise | Medium Brightness: 36 dB Low Brightness: 26 dB |
| Security | Cable Lock Slot |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation | Medium Brightness: 1045 BTU |
| Power Consumption | Full Brightness: 305 W Medium Brightness: 270 W Low Brightness: 190 W Standby Mode (Lamp Off): 0.5 W |
| Operating Altitude | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Storage Humidity | |
| Dimensions (W x H x D) | 15.7 x 5.2 x 13.7" / 399.0 x 133.0 x 348.0 mm |
| Weight | 14.3 lb / 6.5 kg |
