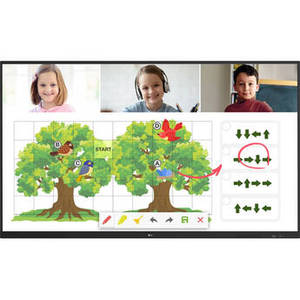

CreateBoard TR3DJ-B Series 65" IPS 4K IR Multi Touch Whiteboard
Product Description
The LG CreateBoard TR3DJ-B Series 65" IPS 4K IR Multi Touch Whiteboard is an ideal tool for everything from office conference rooms to grade-school classrooms. Primarily used to replicate the functionality of a standard whiteboard, the CreateBoard provides a natural experience with support for 20 points of simultaneous, precise touch for a smooth and realistic writing experience, and the ability to use two pens and two colors simultaneously. With the addition of Bluetooth connectivity, other peripherals can be added to expand its functionality. These features and much more can elevate learning and workflow wherever the CreateBoard is used.
| Display | |
| Screen Size (Diagonal) | 65" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 350 cd/m� (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | |
| Response Time | 9 ms (GtG) |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | 68 ppi |
| Backlighting Technology | LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 3 x HDMI Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x HDMI – Audio, Video 1 x TOSLINK Optical – Audio |
| USB Ports | 3 x USB 3.0 / 3.1/3.2 Gen 1 2 x USB 2.0, USB-B 2 x USB 2.0 (Front) 1 x USB 2.0 (Bottom) |
| Control | RS-232C |
| Number of OPS/Expansion Slots | 1 |
| General | |
| Display Orientation | Landscape |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | 30000 Hours |
| Surface | |
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 20 |
| Surface Treatment | Anti-Glare |
| Audio | |
| Built-In Speakers | Yes, 2 x 12 W |
| Processing | |
| Hardware | |
| OS Compatibility | Linux Windows macOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 145.0 W Maximum: 275.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Adapter Type | Internal |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 10 to 80% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | CB, ENERGY STAR, FCC-A, NRTL *as per Manufacturer |
| Physical | |
| Wall Mounting | 600 x 400 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | 17.7 mm (Right/Top/Left) 45.7 mm (Bottom) |
| Duty Cycle | |
| Dimensions | 58.6 x 35.3 x 3.4" / 1488.0 x 897.0 x 86.0 mm |
| Weight | 88.2 lb / 40 kg |
