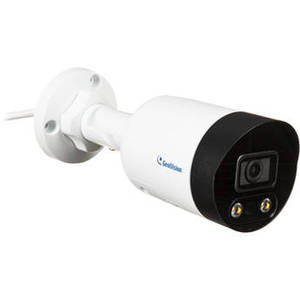

GV-TBL8804 8MP Outdoor Network Bullet Camera with Dual Spotlights & Night Vision
Product Description
Monitor an indoor or outdoor area with the GV-TBL8804 8MP Network Bullet Camera from GEOVISION. This unit uses a 1/2.7" progressive scan low-lux CMOS sensor to capture 3840 x 2160 resolution video at up to 20 fps. An IR LED provides up to 100' of night vision. Additionally, an alarm and dual spotlights with an illumination range up to 65' are triggered by AI detection events for perimeter protection. The camera's 4mm fixed lens delivers an 86° horizontal field of view. Two-way audio is possible thanks to a built-in speaker and microphone. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for safe outdoor use.
| Camera | |
| Sensor | 8 MP 1/2.7" CMOS |
| Lens Mount | M12 |
| Focal Length | 4mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 86° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 20 fps 2944 x 1656 at 25 fps 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Intrusion, Line Crossing, Entering Area, Leaving Area (Human & Vehicle Classification), Motion Detection, Tampering Alarm, Audio Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of December, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 10.5 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 100' / 30.48 m |
| Video Management Software | GV-VMS (V17.4.1/V18.2.1), GV-DVR/NVR (V8.9.1), GV-Control Center (V3.8.0), GV-Recording Server/Video Gateway (V2.0.0), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Redundant/Failover Server (V1.2.0), GV-Eye for iOS and Android |
| Supported Languages | Czech English French German Italian Russian Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | H: 2.8 x W: 2.8 x L: 7.4" / H: 71.0 x W: 71.0 x L: 187.0 mm |
| Weight | 0.9 lb / 0.41 kg |
