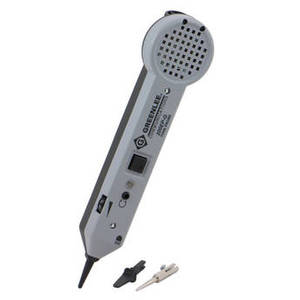

200EP-G Tone Probe Amplifier with Headset Jack & Flashlight
Product Description
The 200EP-G from Greenlee is a tone probe amplifier suitable for testing/tracing wires and cables without disturbing any surrounding insulation. It features a 3.5mm headset jack for monitoring tone in headphones and a flashlight for getting around dark situations. It is suitable for use with any Greenlee tone generator, and utilizes a plastic carbon-fiber tip to prevent accidental shorts. The tone probe runs on one 9V battery, and can do so for up to 50 hours at a clip.
| Gain | 30 dB, nominal |
| Impedance | Input 100 MOhms, nominal Metal probe tip: 0 Ohms Plastic probe tip: 300 Ohms Headset: 8 Ohms, minimum |
| Headset Connector | 1 x 3.5 mm |
| Battery | 1 x 9 V |
| Battery Life | 50 hours, nominal |
| Operating/Storage Temperature | 32 to 122°F / 0 to 50°C |
| Dimensions | 9.1 x 2.2 x 1.1" / 23.1 x 5.5 x 2.8 cm |
| Weight | 5.1 oz / 145.0 g |
