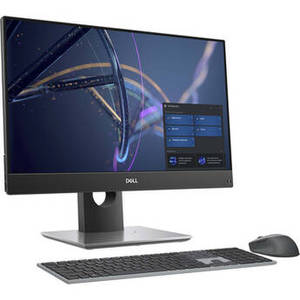

23.8" OptiPlex 5400 All-in-One Desktop Computer

Product Description
The 23.8" anti-glare display features a Full HD 1920 x 1080 native resolution, a 16:9 aspect ratio, 250 cd/m2 brightness, a 1000:1 contrast ratio, a 60 Hz refresh rate, a 25 ms response time, 100% sRGB color gamut coverage, and wide viewing angles of 178°. The integrated Intel UHD Graphics 770 chipset delivers a sharp, clear picture. You'll also be able to output video to an external display using the system's DisplayPort 1.4a and HDMI 2.0 outputs. There is also an HDMI 1.4a input for external video sources.
For storage, it has a 256GB NVMe PCIe M.2 SSD for all your data and media content, plus a second M.2 slot for additional internal storage. You can connect external storage options, optical drives, keyboards, mice, and more via its one 5 Gb/s USB 3.2 Gen 1 Type-C port, two 10 Gb/s USB 3.2 Gen 2 Type-A ports, and three USB 3.2 Gen 1 Type-A ports. You can also take advantage of the UHS-II SDXC card reader to expand your storage as well as transfer data between your mobile devices.
Connect to the internet via dual-band Wi-Fi 6E (802.11ax) or the Gigabit Ethernet jack for a more stable and reliable wired connection. Other integrated features include Bluetooth 5.2 for pairing compatible wireless peripherals, a 1080p webcam, dual-array digital microphones, 2W stereo speakers, a 3.5mm line output, and a 3.5mm universal audio jack. When not in use, the webcam retracts into the system to help safeguard privacy.
This OptiPlex 5400 mounts to an included height-adjustable stand. Also included is a wireless keyboard, a wireless mouse, and a power cord. The installed operating system is Windows 10 Pro and also included is a Windows 11 Pro license. Protection is provided by a limited 3-year warranty.
| Operating System | Windows 10 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i7-12700 (12th Gen) |
| CPU Socket | |
| CPU | 2.1 to 4.8 GHz Performance 8-Core 1.6 to 3.6 GHz Efficiency Quad-Core |
| L3 Cache | 25 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics 770 |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 1 x 16 GB |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 2 (1 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Display | |
| Panel Type | LCD |
| Size | 23.8" |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Touchscreen | No |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 250 cd/m2 |
| Color Gamut | 99% sRGB |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 1000:1 |
| Response Time | 14 ms |
| Variable Refresh Technology | None |
| Viewing Angle (H x V) | 178 x 178° |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | 1 x Height Unspecified (Available) |
| SSD Slots | 1 x M.2 2230, 2280 PCIe 3.0 x4 (In Use) 1 x M.2 2230, 2280 PCIe 3.0 x4 (Available) |
| Total Installed Capacity | 256 GB |
| Solid State Storage | 1 x 256 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) 3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 2 |
| Display | 1 x DisplayPort 1.4a Output 1 x HDMI 2.0 Output 1 x HDMI 1.4a Input |
| Audio | 1 x 1/8" / 3.5 mm Line Output 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | 2 x 2 W |
| Built-In Microphones | 2 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | User-Facing: 2 MP (1080p) |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | 104-Key Wireless Chiclet Full-Size Keyboard with Number Pad |
| Pointing Device | Wireless Mouse |
| General | |
| Security | Dedicated Hardware TPM Security Chip, Kensington Lock Slot |
| Power Supply | 160 W with IEC |
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 3.6 A |
| Operating Temperature | 50 to 95°F / 10 to 35°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Certifications | ENERGY STAR, EPEATGOLD *as per Manufacturer |
| Mounting-Hole Pattern | |
| Dimensions | 21.3 x 13.5 x 2.1" / 54.1 x 34.3 x 5.3 cm |
| Weight | 14.73 lb / 6.68 kg |
