Product Description

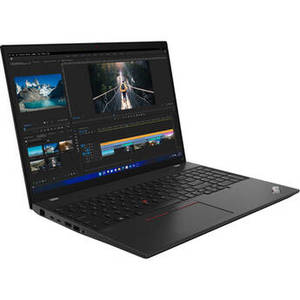

Equipped with a 12th Gen Intel Core i7 processor powered by four 2.1 GHz Performance and eight 1.5 GHz Efficiency cores, you get ample power to run a wide range of programs with ease. Experience swift multitasking and program load time with 16GB of 3200 MHz DDR4 RAM and 512GB M.2 PCIe 4.0 NVMe SSD. Experience a clear and smooth image on the 16" WUXGA 1920 x 1200 resolution In-Plane Switching (IPS) display with integrated Intel Iris Xe graphics. Dual USB Gen 2 Type-C ports support data transfer speeds up to 10 Gb/s, Power Delivery 3.0, and DisplayPort 1.4 technologies, expanding the utility of your ThinkPad T16 Gen 1. You also get two USB 3.2 Gen 1 Type-A ports for devices such as external drives, mice, and more. Bluetooth 5.2 enables you to use wireless devices like wireless headphones and controllers. Connect to your wireless network and access your cloud-based files with Wi-Fi 6E (802.11ax) capabilities. The ThinkPad T16 Gen 1 operates on Windows 11 Pro and includes a downgrade key allowing you to switch to Windows 10.
| Operating System | Windows 11 Pro |
| Model Year | Mid 2022 |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i7-1260P (12th Gen) |
| CPU Socket | |
| CPU | 2.1 to 4.7 GHz Performance Quad-Core 1.5 to 3.4 GHz Efficiency 8-Core |
| L3 Cache | 18 MB |
| Graphics Type | Integrated |
| GPU | Intel Iris Xe |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 1 x 8 GB (Onboard) 1 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | 40 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 1 (0 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Display | |
| Panel Type | IPS-Type LCD |
| Size | 16" |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Touchscreen | No |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 300 cd/m2 |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 PCIe 4.0 (In Use) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 2 x USB 3.1 / USB 3.2 Gen 2 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | Yes |
| Built-In Microphones | Yes |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 1080p |
| Battery | |
| Capacity | 86 Wh |
| Keyboard & Mouse | |
| Keyboard | Full-Size Keyboard |
| Pointing Device | TouchPad |
| General | |
| Security | Nano Security Lock Slot |
| Power Supply | 135 W with USB Type-C |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 14.25 x 10.06 x 0.81" / 36.2 x 25.55 x 2.06 cm |
| Weight | 3.64 lb / 1.65 kg |
