Product Description

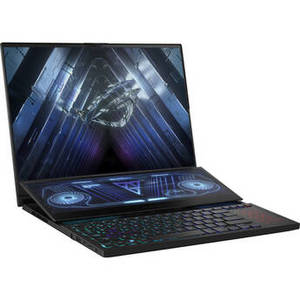

Bring your immersive gaming experience to the next level with the 16" ROG Zephyrus Duo 16 Gaming Laptop from ASUS. This laptop features a Pantone validated 16" display with a 1920 x 1200 FHD resolution and a 16:10 aspect ratio. The display also features a 165 Hz refresh rate and 3 ms response time for, which are paired with FreeSync Premium for smooth gameplay and visuals. Covering 100% of the DCI-P3 color gamut and support for Dolby Vision HDR, you'll experience bright and vibrant colors in your favorite games. Below the display is the ScreenPad Plus, which is a tilting secondary screen. The ScreenPad Plus can provide additional information while you're playing or streaming, and can be used for other apps for a more streamlined multitasking experience. Graphics are handled by the NVIDIA GeForce RTX 3060 laptop graphics card with 6GB of GDDR6 VRAM. Powering the laptop is a 3.2 GHz AMD Ryzen 7 8-core processor, 16GB of DDR5 RAM, and a 1TB M.2 NVMe PCIe SSD for quick performance and fast boot and load times.
Simplify your gaming setup by connecting peripherals such as external mice or storage drives to the ROG Zephyrus Duo's USB 3.2 Gen 2 Type-A and Type-C ports. Wireless peripherals such as headsets can be connected using Bluetooth 5.2. Experience Gigabit speeds when playing online wirelessly thanks to Wi-Fi 6E. Prefer a stable wired connection? Take advantage of the RJ45 port for a 2.5GbE connection. Transfer videos, photos, and other digital media to the laptop using the microSD card reader. Windows 11 Home is the preinstalled operating system.
| Operating System | Windows 11 Home (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | AMD Ryzen 7 6800H |
| CPU Socket | |
| CPU | 3.2 to 4.7 GHz 8-Core |
| L3 Cache | 20 MB |
| Graphics Type | Hybrid |
| GPU | NVIDIA GeForce RTX 3060 with 6 GB GDDR6 VRAM AMD Radeon |
| Memory Type | 4800 MHz DDR5 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 2 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 262-Pin SO-DIMM |
| Memory Slots | 2 (0 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Display | |
| Panel Type | IPS-Type LCD |
| Size | 16" |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Touchscreen | No |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 500 cd/m2 |
| Color Gamut | 100% sRGB |
| Refresh Rate | 165 Hz |
| Contrast Ratio | 1200:1 |
| Response Time | 3 ms |
| Variable Refresh Technology | FreeSync Premium |
| Viewing Angle (H x V) | 170 x 170° |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 SATA / PCIe 4.0 (In Use) 1 x M.2 SATA / PCIe 4.0 (Available) |
| Total Installed Capacity | 1 TB |
| Solid State Storage | 1 x 1 TB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 2 (Supports DisplayPort) 1 x USB 3.1 / USB 3.2 Gen 2 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 2.1 |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output |
| Built-In Speakers | 6 |
| Built-In Microphones | Yes |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-II) |
| Communications | |
| Ethernet | 1 x RJ45 (2.5GbE) |
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 720p |
| Battery | |
| Battery Chemistry | Lithium-Ion |
| Capacity | Non-Removable 4-Cell: 90 Wh |
| Keyboard & Mouse | |
| Keyboard | Chiclet Notebook Keyboard with Backlight |
| Pointing Device | TouchPad |
| General | |
| Security | BIOS Booting, Firmware TPM (Software-Based), Facial Recognition |
| Power Supply | 240 W with Barrel/Proprietary |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 12 A |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 13.98 x 10.47 x 0.81" / 355.09 x 265.94 x 20.57 mm |
| Weight | 5.51 lb / 2.5 kg |
