Product Description
For storage of your files, this system is equipped with a 256GB PCIe 3.0 x4 M.2 SSD, as well as empty 2.5" drive bay. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the OptiPlex 5000 features one 5 Gb/s USB 3.2 Gen 1 Type-C port and five 5 Gb/s USB 3.2 Gen 1 Type-A ports. The integrated Intel UHD Graphics 770 chipset delivers a sharp, clear picture, while allowing for multiple simultaneous displays to be used via its DisplayPort 1.4 outputs. Network connectivity is achieved using an integrated Gigabit Ethernet port, or connect with your network and peripherals wirelessly using Wi-Fi 6E (802.11ax) and Bluetooth 5.2

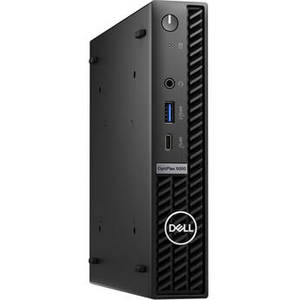

The OptiPlex 5000 Micro includes a Dell KM5221W Pro Wireless Keyboard and Mouse Combo, a 90W AC adapter, and a power cord. The installed operating system is Windows 10 Pro (64-Bit) and also included is a Windows 11 Pro license.
| Operating System | Windows 10 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | Intel Q670 |
| Processor | Intel Core i5-12500T (12th Gen) |
| CPU Socket | LGA 1700 |
| CPU | 2 to 4.4 GHz Performance 6-Core |
| L3 Cache | 18 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics 770 |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 1 x 16 GB (User-Replaceable) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 2 (1 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | 1 x 2.5" (Internal) |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2230, 2280 (In Use) |
| Total Installed Capacity | 256 GB |
| Solid State Storage | 1 x 256 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 5 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 2 |
| Display | 2 x DisplayPort 1.4a |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | 1 x 2 W |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | 104-Key Wireless Full-Size Keyboard with Number Pad |
| Pointing Device | Wireless Mouse |
| General | |
| Security | Kensington Lock Slot |
| Power Supply | 90 W with Barrel/Proprietary |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Certifications | ENERGY STAR, EPEATSilver, RoHS, TCO Certified, WEEE *as per Manufacturer |
| Mounting-Hole Pattern | |
| Dimensions | 7.17 x 7 x 1.42" / 182.12 x 177.8 x 36.07 mm |
| Weight | 2.06 lb / 0.93 kg |
